What is a motorcycle test device, what does it do?
A motorcycle diagnostic tool communicates with supported electronic control units to display diagnostic information such as fault codes and live data. Device selection is not made based on brand name alone; the motorcycle's exact model, production year, engine, diagnostic connector, and the task to be performed are all included in the evaluation. This guide helps users looking for a motorcycle fault code reader to correctly distinguish between a code reader, brand adapter, and service tool.
The MT200 is a portable device focused on fault code, live data, and brand adapter connectivity needs for motorcycles, scooters, and ATVs.
Sale price and stock status are shown on the product page. Compatibility must be checked with make, model, year, engine, connector, and the task to be performed.
Current sales price≈ $35417,500 TL charged · VAT included · import duties excludedIn stock
Initial check based on task for a motorcycle diagnostic tool
Compare the required function with the necessary connection and software coverage on the same motorcycle.
Usage need
What is expected from the device
Information required before ordering
Engine fault light
Fault code reading and clearing
Make, model, year, engine ECU
Irregular operation
Supported live data values
Symptom, engine, and control unit
ABS or other system
Access to the relevant control unit
System name and motorcycle information
Different brand motorcycles
Software coverage and adapter set
In-workshop make-model list
Scooter or ATV
Vehicle type-appropriate connector and software
Full model, year, engine, and socket photo

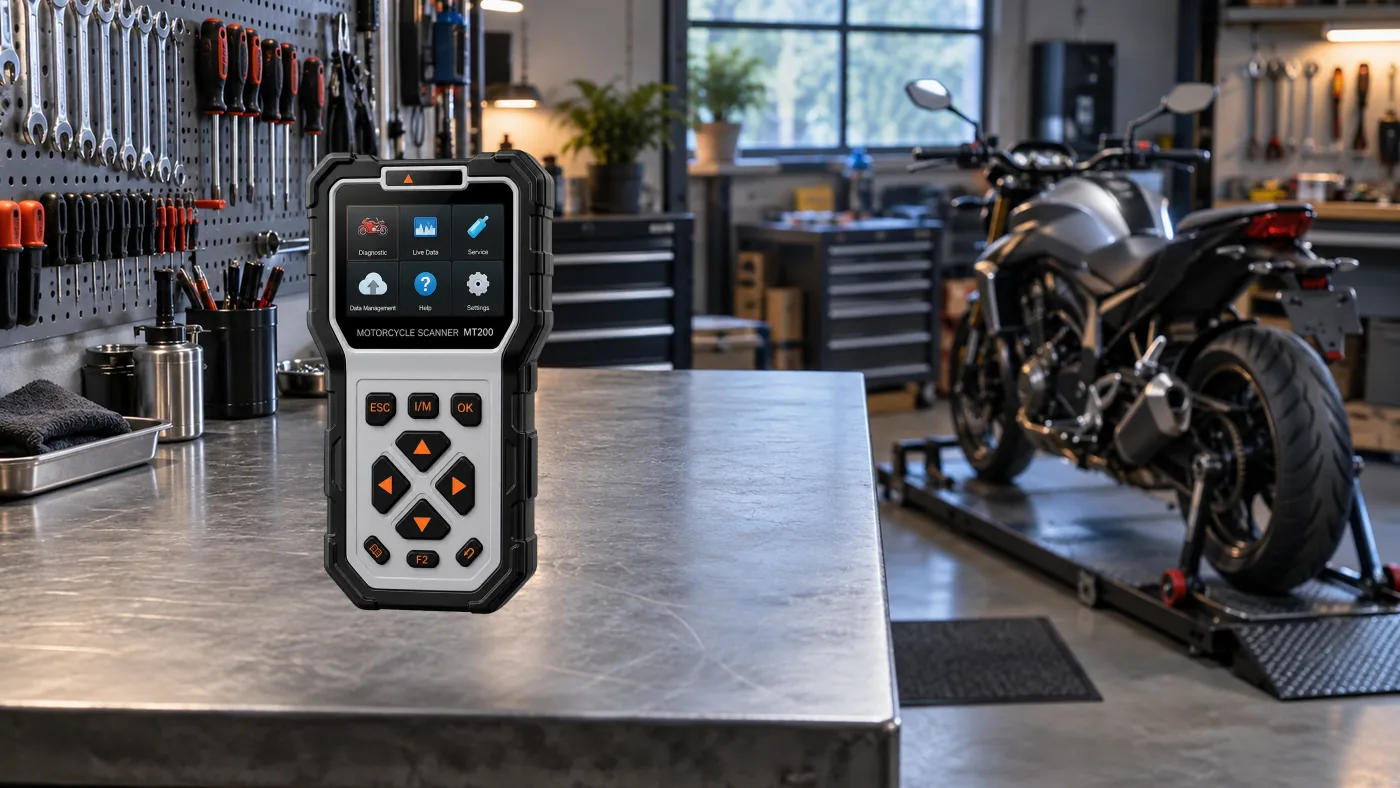

Actual Ancel MT200 device and motorcycle service bench
Decision guide
What information does a motorcycle diagnostic tool display?
Motorcycle diagnostic tool communicates with the ECU supported by the device software. The most basic use is reading fault codes, recording descriptions, and monitoring supported live data. Some devices can access systems other than the engine ECU; however, this scope is not the same for every motorcycle.
A fault code indicates that the ECU has recorded a specific electrical or functional condition. The code alone does not tell you the part to replace. The condition under which the code occurred, the motorcycle's symptom, battery voltage, socket condition, and physical measurements are examined together.
Live data is used to monitor engine RPM, voltage, or other values provided by the ECU during operation. The list of displayed parameters depends on the motorcycle's ECU structure. Conditions such as engine temperature, ignition status, and test time are added to the service record for comparison.
Clearing codes is not a repair. Clearing codes without saving the initial scan can result in losing the fault history. In a healthy service workflow, existing codes are first recorded, physical checks are performed, and the system is scanned again after the procedure.
Fault code and description
Supported live data
Initial scan and post-procedure check
Decision guide
How does a motorcycle fault code reader work?
The motorcycle fault code reader connects to the ECU via the correct adapter and diagnostic socket. The brand, model, or system is selected in the device menu; communication is initiated when the ignition and power conditions are ready. Selecting the wrong vehicle or a loose connection can lead to communication errors and an incomplete menu.
Before connecting, check the location and visible condition of the socket. If there are bent pins, oxidation, dirt, or a forced socket, the physical issue must be resolved before connecting the device. Pin configurations are not assumed to be the same for similar-looking sockets.
If the device does not communicate with the motorcycle despite being powered on, first check the power, ignition, correct menu, and adapter. If the problem persists, compare the software version, the motorcycle's ECU, and the cable pins. Not every communication issue means a faulty ECU.
The code number, description, system name, and date obtained during the scan are saved together. After repair or connection correction, the same ECU is scanned again. The difference between the initial and final record helps evaluate the result of the performed procedure.
Correct socket and adapter
Correct vehicle and system menu
Save initial scan without clearing
Decision guide
Difference between a motorcycle OBD device and a car OBD2 reader
Although the term "motorcycle OBD device" is commonly used, motorcycle connections cannot be reduced to the standard 16-pin socket expectation found in cars. Motorcycle brands and model families may use different diagnostic sockets. A physical adapter and device software are two separate requirements.
A converter cable only establishes the electrical connection layout. A basic OBD2 reader developed for cars does not automatically gain motorcycle-specific system support when a brand adapter is attached. The device's software must include the motorcycle and the relevant ECU.
The engine ECU and ABS or instrument cluster on the same motorcycle may have different access conditions. A device capable of reading engine codes is not assumed to read other modules. The desired system must be explicitly sought in the product information.
The question "Does it have an OBD socket?" is not sufficient during a purchase discussion. Share a photo of the socket, the number of pins, the motorcycle's model year, and the intended procedure. This separates cable and software scope.
Physical socket separate
Software scope separate
ECU support separate
Decision guide
Is motorcycle diagnostic software sufficient on its own?
A motorcycle fault detection program is the software layer that displays supported motorcycle data on the screen; simply installing it on a phone or computer is not sufficient to communicate with the vehicle. A compatible device or VCI, the correct motorcycle adapter, an account or license requirement, and the relevant brand-model-year software scope are all necessary.
The phone or computer application provides the user interface. The device or VCI handles communication with the vehicle. The appearance of a random Bluetooth OBD adapter in the application does not prove it can access the motorcycle's engine ECU or other systems like ABS.
The program displaying brand logos does not mean it supports all models and functions. Fault code, live data, service reset, and active test must be checked separately; the required adapter is verified through the delivered package.
For devices purchased second-hand or from different regions, the serial number, account access, license duration, update channel, and available motorcycle packages must be verified before payment. An APK file or cable alone is not proof of current and legal usage.
Application or PC program
Compatible device or VCI
Motorcycle adapter
License and vehicle scope
Decision guide
Why is a brand adapter as important as the device?
In a motorcycle diagnostic device, the brand adapter establishes the physical connection between the main device and the motorcycle's diagnostic socket. Different adapter configurations may be seen in brand families such as Yamaha, Honda, BMW Motorrad, Harley-Davidson, Suzuki, Kawasaki, Kymco, SYM, PGO, or KTM. The set to be sent must be checked against the purchased package.
The name of the adapter alone is not sufficient. The pin layout, the main connection on the device side, the motorcycle socket, and power requirements must match. The cable should not be forced, and pins should not be randomly energized.
Cable shortages in used or opened packages can incur separate costs. The main test cable, power cable, and brand adapters should be counted upon delivery; they must be compared against the package description on the product page.
The presence of an adapter in the package does not imply support for all models. After establishing a physical connection, the device's software must support communication for the specific model year and ECU.
Socket and pin matching
Main cable and power connection
Check package contents upon delivery
Decision guide
How is live data used in motorcycle diagnostics?
Live data allows monitoring of values provided by the ECU while the engine is running or the ignition is on. The display of a single value on the screen is not a direct result of a fault. The value is evaluated against operating temperature, engine speed, electrical supply, and manufacturer service information.
If a complaint only occurs at a specific temperature or RPM, data is recorded under that condition. Values obtained at idle are not used as the same reference as values obtained under load. If test conditions are not recorded, measurements cannot be compared again.
Battery and charging voltage can affect communication stability. Communication codes generated during low supply voltage are re-evaluated after the connection or battery issue is resolved. Not every communication code is directly an ECU fault.
Live data does not replace physical measurement. For suspected sensors or circuits, supply, ground, socket, and, if necessary, appropriate measurement device checks are performed. The diagnostic screen provides the technician with initial and comparative data.
Record test condition
Check voltage and connection
Verify data with physical measurement
Decision guide
Choosing a scooter and ATV diagnostic tool
In searches for scooter diagnostic tools and ATV diagnostic tools, the vehicle type is only the initial filter. Actual compatibility is determined by the exact make, model, production year, engine, diagnostic socket, and system to be read. Vehicles using different engines and ECUs may exist within the same brand.
On the scooter side, different connection cables may be required for brand families such as Kymco, SYM, Piaggio, Vespa, Aprilia, or PGO. The presence of the brand name in the list does not mean the same operations will be available on all models.
On the ATV or trike side, the vehicle platform, engine ECU, and socket structure are checked separately. In families like BRP or Arctic Cat, the correct physical connection and software menu are sought together.
Before ordering, provide a clear photo of the socket, the vehicle label, and the intended operation. This information helps reduce the selection of incorrect adapters or devices based solely on vehicle type.
Exact model and socket for scooter
Platform and engine for ATV
Software support by operation
Decision guide
Order of use for a motorcycle diagnostic tool in a workshop
Regular service use begins with the motorcycle intake record. The make, model, year, engine, customer complaint, and dashboard warning are recorded. Then, visual inspection, supply check, correct adapter, initial scan, live data, and post-operation scan are performed sequentially.
The initial scan is saved without clearing codes. The system from which the code originates and whether it is present or historical is distinguished. Parts are not selected without establishing a relationship with the customer complaint.
If a menu for active commands, resets, or adaptations exists, the operating conditions are read from the device screen and the vehicle's service procedure. Operations requiring stable power, correct ignition position, and uninterrupted connection must not be left unfinished.
At the end of the operation, the motorcycle is scanned again, and if necessary, live data is acquired under the same operating conditions. The initial record, performed checks, replaced parts, and final results are kept in the same service document.
Vehicle intake information
Initial scan without clearing codes
Post-operation re-check
Decision guide
How to evaluate motorcycle diagnostic tool prices?
The price of a motorcycle diagnostic tool is not just the main device cost. The adapter set, main connection cable, power equipment, software coverage, update method, and after-sales support affect the total cost of ownership. Comparisons should be made based on the same package and intended use.
A low-priced package that does not include necessary adapters can lead to the subsequent cost of searching for cables. A package that appears very comprehensive can also create unnecessary costs due to brand connections that will not be used in the workshop.
Update conditions and device accounting vary by product model. Before ordering, the included period, update method, and usage conditions with the current software are reviewed in writing. Campaigns in other country packages are not automatically applied to sales in Turkey.
The current sales price and stock can be read from the live store information on the product page. Prices from old blog posts, screenshots, or search engine caches are not valid for new orders.
Device and adapter package
Software and updates
Sales price and stock status
Decision guide
Who is the Ancel MT200 suitable for?
The Ancel MT200 is considered for users who require a portable device, physical buttons, fault code reading, live data, and a brand adapter set for motorcycles, scooters, and ATVs. Users seeking a tablet-like large screen operation or automotive diagnostic coverage should look at other device options.
Users purchasing a device for a single motorcycle should check the exact model and intended operation. For multi-brand workshops, a list of vehicles accepted in recent months should be compiled to compare adapter and software coverage against actual workload.
The MT200 is available for online order throughout Turkey. Price and stock are shown on the product page; the delivery address is collected at the payment step. Shipping time may vary depending on the address and operational conditions.
The choice between MT200 and MT700 is not made solely on price. Portability, screen, adapter package, systems to be read, and service intensity are examined in separate sections of the comparison guide.
Portable motorcycle device
Connection with brand adapters
Compatibility by model and operation
Frequently Asked Questions
Most frequently asked questions by customers
Does a motorcycle diagnostic tool work on every motorcycle?
No. Brand, model, manufacturing year, engine, control unit, diagnostic socket, and device software must be supported together. The same device may show different system and data coverage on different motorcycles.
Does a motorcycle fault code reader indicate the faulty part?
A fault code provides initial information for the relevant circuit or system; it is not a standalone basis for part replacement. Symptoms, power supply, socket, cable, live data, and physical measurements are checked together.
Can an automotive OBD2 device be used on a motorcycle?
Access to certain standard data may be possible on some motorcycles; however, the physical socket and brand software are different. A converter cable does not add motorcycle-specific software support to an automotive device.
Can diagnostics be performed by downloading motorcycle fault detection software?
The software alone is not sufficient. A compatible device or VCI, the correct motorcycle adapter, the necessary account or license, and software support for the brand-model-year are required. Appearing in the app store is not proof of compatibility for a specific motorcycle and procedure.
Why is an adapter needed for a motorcycle diagnostic tool?
The adapter establishes the physical connection between the device's main cable and the motorcycle's brand- or model-family-specific diagnostic socket. Pinout and software support are checked separately.
Is a separate fault detection device needed for scooters?
The decision is made not by scooter name but by exact make, model, year, engine, connector, and the task to be performed. A compatible motorcycle diagnostic tool can be used if it supports the relevant scooter software and adapter.
What to consider when choosing an ATV diagnostic tool?
Prepare the ATV's make, model, year, engine, control unit, and connector information. Search for the desired fault code, live data, or other function within the device's current coverage.
Why do motorcycle diagnostic tool prices vary?
The main unit, screen and hardware structure, adapter set, software coverage, update conditions, and support model affect the price. Since the same device name may be offered with different packages, the box contents should be compared.
Should the Ancel MT200 be purchased as a motorcycle diagnostic tool?
The MT200 is considered for portable motorcycle, scooter, and ATV diagnostics, fault code, live data, and brand adapter needs. Vehicle and task compatibility must be verified before purchase.
The Ancel MT200 is a portable diagnostic device used for reading fault codes and monitoring live data for motorcycles, scooters, and ATVs, connecting via brand-specific adapters.
