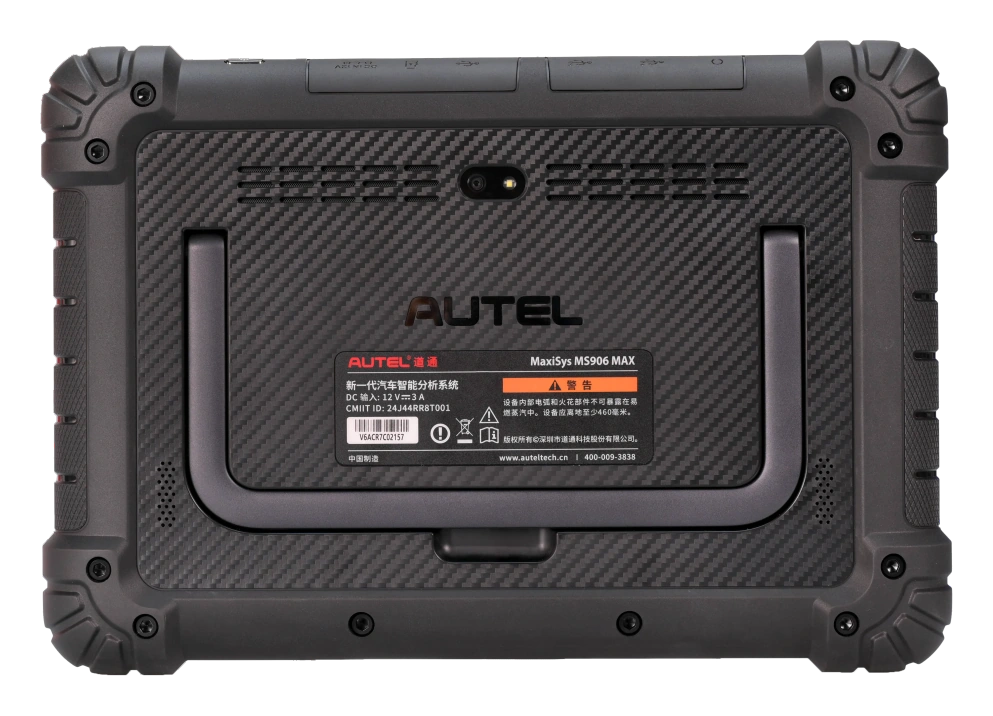

Tablet and V200 interfaceOpen carrying caseRear housing and model label
Autel · Vehicle Diagnostic Tools
Autel MS906MAX
The Autel MS906MAX is a professional service tablet featuring a 10.1-inch screen, MaxiVCI V200 connectivity, CAN FD/DoIP support, and bi-directional active tests.
The MS906MAX combines a 10.1-inch screen, MaxiVCI V200 wireless connectivity, full system scanning, live data, and active tests on supported vehicles for professional service use.
The Autel MS906MAX is a professional diagnostic device operating with a 10.1-inch Android 10 tablet, 4 GB RAM, 128 GB storage, and MaxiVCI V200. It performs full system scans, reads and clears fault codes, displays live data, and executes bi-directional active tests and supported service functions.
The device does not include a J2534 programming interface, integrated oscilloscope, or electric vehicle battery adapter set; related hardware and software must be selected separately for these tasks.
What would you buy this for?
Multi-brand workshops performing full system scans and service reports upon vehicle intake
Technicians regularly using live data and active tests on a wireless tablet
Workshops seeking a 10.1-inch screen, 128 GB storage, and CAN FD/DoIP support
Professionals performing maintenance resets, adaptations, and supported coding operations with vehicle-specific verification
Featured diagnostic features
Vehicle and Function Coverage
Turkey package contents
Update Conditions
Vehicle Coverage
Which vehicles does Autel MS906MAX support?
The make name alone does not guarantee compatibility. Within the same make, model year, engine, chassis, control unit, communication protocol, and intended operation can yield different support results.
Vehicle Group
Passenger cars and light commercial vehicles included in the product software
Supported makes
Multi-brand coverage; the current make list is obtained from the manufacturer's official vehicle or protocol database.
Supported models
Verified from the official coverage screen based on make, model, model year, engine or chassis, and control unit.
Scope of service
Code reading, live data, active test, service function, coding, and programming may be supported separately.
Connection conditions
Vehicle and function scope, Turkey package contents, Update conditions
The make and model examples on the page do not guarantee all production years and all functions.
Before any definitive operation, the manufacturer's current coverage record must be verified with the VIN or full vehicle information.
The device scans control units on supported passenger cars and light commercial vehicles; it displays fault codes, freeze frame data, and live data channels. The bi-directional control feature helps observe electrical response by commanding a relay, valve, fan, lamp, or other actuator on a compatible vehicle.
The service menu may include common functions such as oil maintenance, electronic parking brake, steering angle sensor, battery registration, throttle body, injector, DPF, and brake bleeding.
Since each menu varies by vehicle make, model, year, and control unit, the mere presence of a function name on the device is not proof of support on a specific vehicle.
Read and clear fault codes in all systems
Monitor live data in text or graph format
Bi-directional active test on supported control units
Vehicle-specific coding, adaptation, and service functions
Fast system scan with Auto Scan 2.0
Product details
Verified Technical Specifications
Autel's official product page and the MS906 MAX user manual publish the same basic hardware specifications. The 10.1-inch screen with 1920 x 1200 resolution is designed for easier reading of extensive system lists and multiple live data graphs.
The octa-core processor, 4 GB RAM, and 128 GB internal storage form the tablet's operational foundation for vehicle software, reports, and records. Storage space can be expanded up to 256 GB with an SD card.
Model
MaxiSYS MS906 MAX / MS906MAX
Operating System
Android 10
Processor
Octa-core processor
Memory / Storage
4 GB RAM / 128 GB internal storage
Screen
10.1-inch LCD touchscreen, 1920 x 1200
Battery
11,600 mAh, 3.85 V lithium-polymer
Rear Camera
13 MP
Wireless connection
Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 5.0
Physical connections
2 USB Type-A, Mini USB, and SD card up to 256 GB
Vehicle Interface
Bluetooth-enabled MaxiVCI V200
Product details
What does CAN FD and DoIP support provide?
The MS906MAX supports current vehicle communication protocols, including CAN FD and DoIP, via the MaxiVCI V200. This hardware is necessary for physical and software communication with vehicles using these protocols; however, protocol support does not imply automatic activation of all makes, models, and functions.
On a vehicle using DoIP, the relevant control unit, model year, and intended operation must also be found within Autel's vehicle coverage. The same rule applies to newer generation vehicles using CAN FD.
DoIP: Supports Ethernet-based diagnostic communication
CAN FD: Connects to next-generation CAN networks carrying higher data rates
Supports common diagnostic protocols including ISO 15765 and ISO 14229 UDS
Protocol presence and vehicle function scope are verified separately
Product details

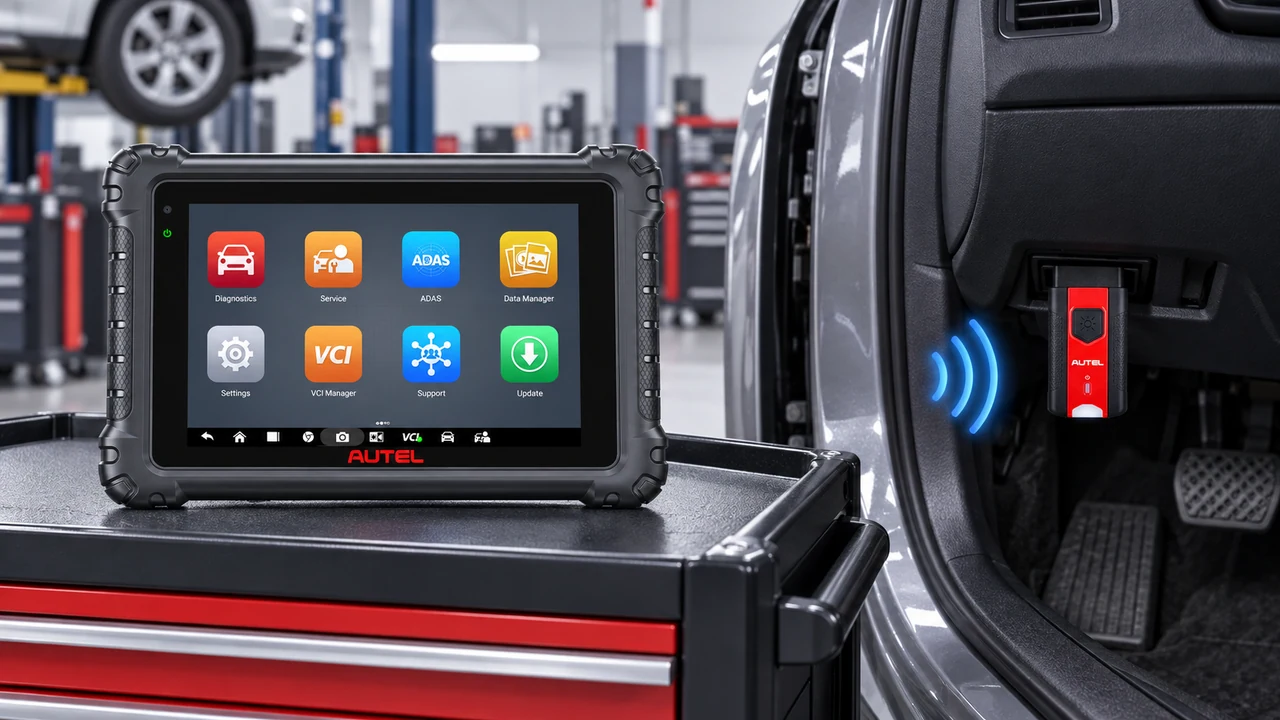

Wireless operation with MaxiVCI V200
The MaxiVCI V200 connects to the vehicle's OBD socket; the MS906MAX tablet communicates wirelessly with the VCI.
The package handles the vehicle connection via the MaxiVCI V200. The VCI is plugged into the vehicle's OBD socket, communicates with the tablet via Bluetooth, and allows the technician to move around the vehicle while scanning. The correct vehicle selection, VCI serial number, and software version must be checked during initial setup.
Vehicle voltage must be kept stable during commands like active tests, adaptations, or coding; operations should not begin without addressing low battery levels, sleep mode, or network interruptions that could cause connection loss.
Connect MaxiVCI V200 to the OBD socket
Pair tablet and VCI via Bluetooth
Verify VIN and vehicle identification before scanning
Monitor vehicle voltage during write or active commands
Product details
Full system scan upon vehicle intake
When a vehicle is newly received, its VIN and model information are first verified, then all accessible control units are scanned. The initial report records communicating modules, current and past fault codes, freeze frame data, and scan time. Systems related to customer complaints are isolated rather than clearing codes immediately.
After repairs are completed, the same vehicle is scanned a second time and compared to the initial report. This allows the delivery report to show which records have been resolved, which have returned, and which systems require further investigation.
Verify VIN and vehicle configuration
Save initial scan report without clearing codes
Identify control units related to complaints
Rescan after repair and compare reports
Product details
Compare live data with fault conditions
The technician notes the RPM, temperature, load, and voltage conditions under which the customer's complaint occurred. By selecting only the relevant sensor and control values on the tablet, unnecessary data clutter is reduced. Values are monitored in graph view; the technician compares suspicious changes with fault codes, freeze frames, and physical measurements.
A single live data value does not directly lead to a parts replacement decision. After intervention, the same operating condition is recreated, and the second recording is compared to the initial data set.
Record operating conditions where the complaint occurred
Select relevant live data channels
Compare graph with fault code and physical measurement
Remake measurement under the same condition after repair
Product details
Circuit check with bi-directional active test
On supported vehicles, the active test menu sends commands to activate or deactivate a specific output from the control unit. For example, a fan, pump, relay, valve, door lock, or lighting element can be triggered by command. The technician monitors the physical response of the component, supply voltage, and relevant live data simultaneously when the command is issued.
A component not moving does not solely prove the component is faulty; wiring, fuses, relays, power supply, and the control unit output must all be checked within the same circuit.
Verify the relevant active test from vehicle coverage
Prepare safe operating conditions and battery voltage
Monitor physical response and live data while issuing command
Verify results with circuit measurement and manufacturer procedure
Product details
Controlled application for maintenance and adaptation procedures
Service menu functions such as oil maintenance reset, electronic parking brake, steering angle sensor, battery registration, throttle body adaptation, or DPF procedures require different pre-conditions depending on the vehicle.
Before initiating a procedure, the correct engine and control unit are selected; battery support device, temperature, ignition status, and mechanical preparation are completed according to the manufacturer's procedure. Seeing a 'successful' message on the screen does not solely prove the task is mechanically and electrically complete.
Relevant fault codes and live values should be re-read, and if a road test is required, the service procedure must be completed.
Verify function by make, model, year, and control unit
Complete voltage and mechanical pre-conditions
Apply on-screen guidance along with vehicle manufacturer procedure
Re-check codes, values, and warning lights after the procedure
Product details
Service report and record organization
The device offers options to convert scan results into service records and share reports via QR code, text message, or email. When preparing the report, vehicle identification, mileage, date, initial scan, performed operation, and final scan should be separated.
Customer data should be stored only in accounts accessed by authorized users; personal information should be checked before sending the report. In workflows supporting Wi-Fi printing, the report can also be added to a physical service form.
Store initial scan and final check reports separately
Add vehicle ID, mileage, and service date
Share report via QR code, message, or email
Perform access and content check before sending customer data
Product details

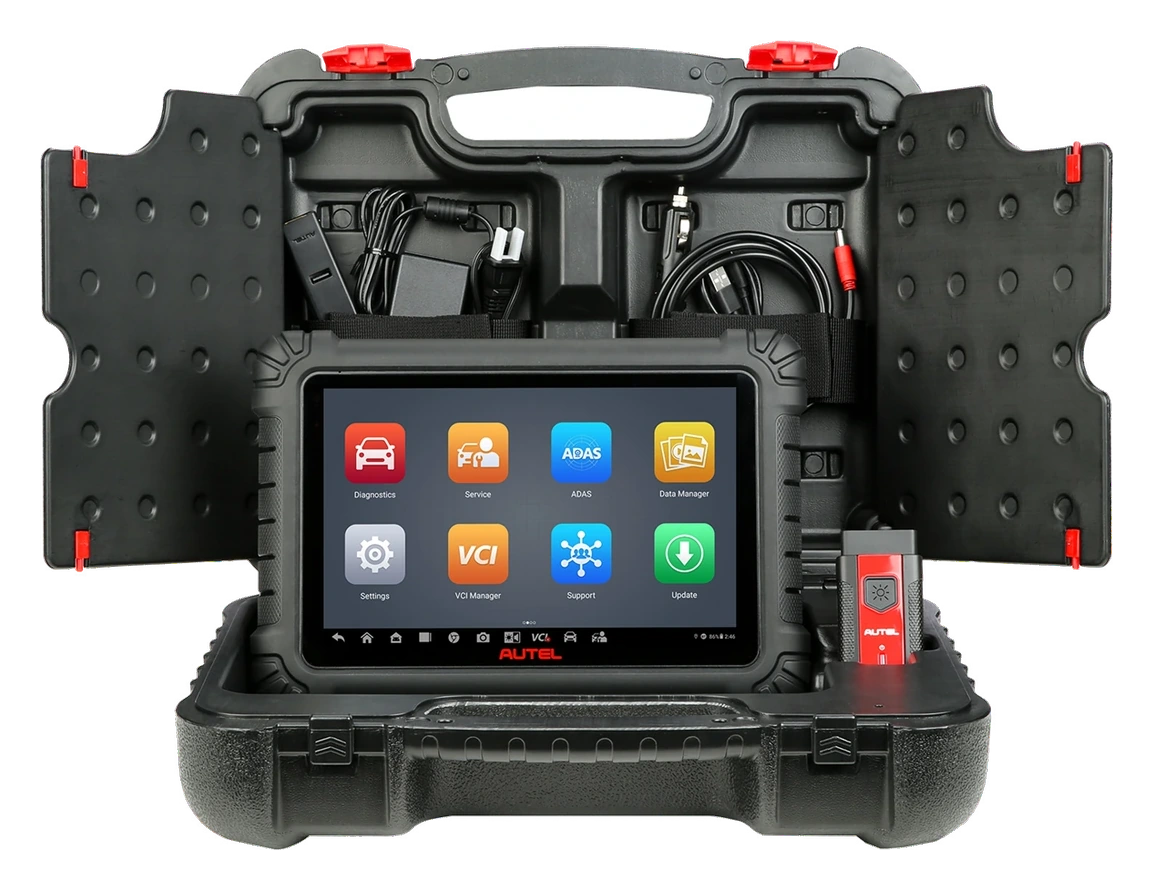

Package contents and separately sold equipment
Autel's published standard reference package list includes the MS906MAX main tablet, MaxiVCI V200, 12V AC/DC power adapter, USB Type-C cable, auxiliary power outlet adapter, two spare fuses, USB-to-Ethernet adapter, quick start guide, package list, cleaning cloth, and carrying case.
The box delivered in Turkey must match the order record, product label, and the current package shown by the seller. MP608, videoscope, battery tester, ADAS calibration system, and other optional modules shown in images are not considered part of the standard package.
MS906MAX main tablet and MaxiVCI V200
12V power adapter and USB Type-C cable
Auxiliary power outlet adapter and two spare fuses
USB-to-Ethernet adapter, quick start guide, and package list
Cleaning cloth and carrying case
MP608, videoscope, battery tester, and ADAS system are separate equipment
Product details
Software, updates, and vehicle coverage
Vehicle software and service functions are tied to the device account. Update or warranty periods specified in Autel stores in different countries do not automatically apply to the Turkey sales package; the current commercial terms of the purchased device must be indicated in the order and invoice record.
When the update period expires, the device's ability to operate with the existing software is separate from access to new vehicle and function updates. Before deciding on renewal, the serial number, current software version, and required vehicle coverage should be checked.
Verify the update period in the Turkey package from the order record
Record device serial number and Autel account upon delivery
Distinguish between the end of the update period and the use of existing software
Check the scope list before needing new vehicle or function coverage
Product details
How to verify MS906MAX vehicle and function coverage?
For precise compatibility, the vehicle make alone is insufficient. The model, model year, engine or chassis distinction, control unit, and the intended operation must be selected together.
On Autel's official vehicle coverage tool, by entering the device model and vehicle information, system scan, live data, active test, coding, or service functions are searched for individually. Vehicles with a security gateway may require an internet connection, active software, and authorization or an SGW license from the respective manufacturer.
Sharing the VIN and the name of the intended operation before ordering reduces the risk of selecting the wrong model.
Prepare brand, model, year, and engine/chassis information
Clearly identify the system and operation to be performed
Check the MS906MAX and relevant ECU line in the Autel coverage tool
Verify SGW, adapter, license, and internet requirements separately
Product details
Which models are compared when selecting MS906MAX?
This model is a professional service option for workshops that want a 10.1-inch screen, MaxiVCI V200, 4 GB RAM, 128 GB storage, and CAN FD/DoIP support in a single package. When comparing with MS906S and MS906S PRO, the screen, vehicle connection interface, protocol support, storage, and actual function list should be examined.
Services regularly using J2534, topology, more advanced connectivity, or additional measurement hardware can upgrade to the MS908S3 or MS909 families. Price comparisons should not be made without equalizing the standard package contents and software conditions.
Select MS906MAX
If a 10.1-inch screen, V200, CAN FD/DoIP, and daily professional diagnostics are sufficient
Compare MS906S / MS906S PRO
If budget, screen, VCI, and current vehicle coverage are deciding factors within the same family
Compare MS908S3
If official function differences are required for higher-end hardware and service intensity
Compare MS909 and above
If J2534, topology, or measurement ecosystem is a regular part of the work plan
Product details
Limitations to know before purchasing
While the MS906MAX offers a wide set of diagnostic functions, it is not a one-stop shop. For ADAS calibration, Autel requires the calibration system, purchased separately with a software upgrade. The oscilloscope function can be used with a separate hardware device like the MP608; the MP608 is not included in the standard package contents.
Battery test and videoscope support also require compatible accessories. Devices, licenses, and safety equipment required for ECU programming, key operations, electric vehicle high-voltage battery testing, and heavy-duty vehicle connection must be verified separately.
ADAS calibration system is not included in the standard package
MP608 and other measurement hardware are sold separately
Videoscope and battery tester require separate accessories
Vehicle coverage, license, and security gateway conditions vary by model
SGW Package
FCA/Stellantis SGW license for Autel MS906MAX
For authorized operations such as clearing codes, active tests, service operations, and adaptations in supported vehicles with FCA/Stellantis security gateways, SGW access may be required. This package is added to the cart separately as a digital license.
Autel FCA/Stellantis SGW Unlock 1 year
1 year of SGW access is processed as digital activation. Device serial number and account information are required for activation.
It can be used on supported US, European, and Asian vehicles; however, definitive coverage is determined not by brand name but by model, year, engine, control unit, and the intended service. Before purchasing, the MS906MAX should be selected in the Autel vehicle coverage tool to check the relevant function.
Does the MS906MAX perform bi-directional active tests?
Yes. The official product page indicates bi-directional control and active test support. The fan, pump, valve, relay, or other components that can be activated vary depending on the vehicle's control unit and software coverage.
Does MS906MAX support CAN FD and DoIP?
Yes. CAN FD and DoIP protocols are supported with the MaxiVCI V200. This support does not mean all functions are active on every vehicle using the protocol; vehicle and scope of operation must be verified separately.
Which VCI is included in the MS906MAX package?
Autel's official product and package information includes the Bluetooth-enabled MaxiVCI V200. The serial number and contents of the delivered product should be compared against the order record.
Does MS906MAX perform ECU programming?
The device can offer coding and adaptation functions on supported vehicles; however, the standard package does not include a J2534 pass-thru programming interface. Specific ECU writing or programming tasks require separate verification of the vehicle, control unit, method, and necessary external hardware.
What is the update and warranty period for MS906MAX?
The period must be verified from the commercial registration of the purchased Turkey package. Update or warranty periods stated in Autel stores in other countries do not automatically apply to Turkey orders; the valid period is conditional on the order and invoice.
Does MS906MAX include an oscilloscope or battery tester?
No. The tablet can support the use of a compatible videoscope, battery tester, and oscilloscope via MP608; these hardware components are not included in the standard MS906MAX package and must be selected separately.
Is MS906MAX suitable for professional service?
It is suitable for multi-brand workshops performing daily full system scans, live data, active tests, maintenance, and adaptation procedures. If J2534 programming, integrated measurement, EV battery, or heavy-duty work are the primary needs, different devices and packages should be compared.
