Opel MDI 2 or OP-COM? Which is suitable for which user?
For a single older Opel and verified module scope, OP-COM may be more economical. If different GM years, GDS2/Tech2Win, and service workflows are required, MDI 2 is considered.
MDI 2 and OP-COM are not two equivalent cables in the same price class. While OP-COM represents different board and software versions in the market, MDI 2 is GM's VCI approach that opens up to the PC-based MDI Manager, GDS2, Tech2Win, and SPS2 ecosystem. The decision is not made solely by the question 'Does it connect to Opel?', but by verifying the vehicle era, intended operation, license, and hardware identity separately.
MDI 2 option

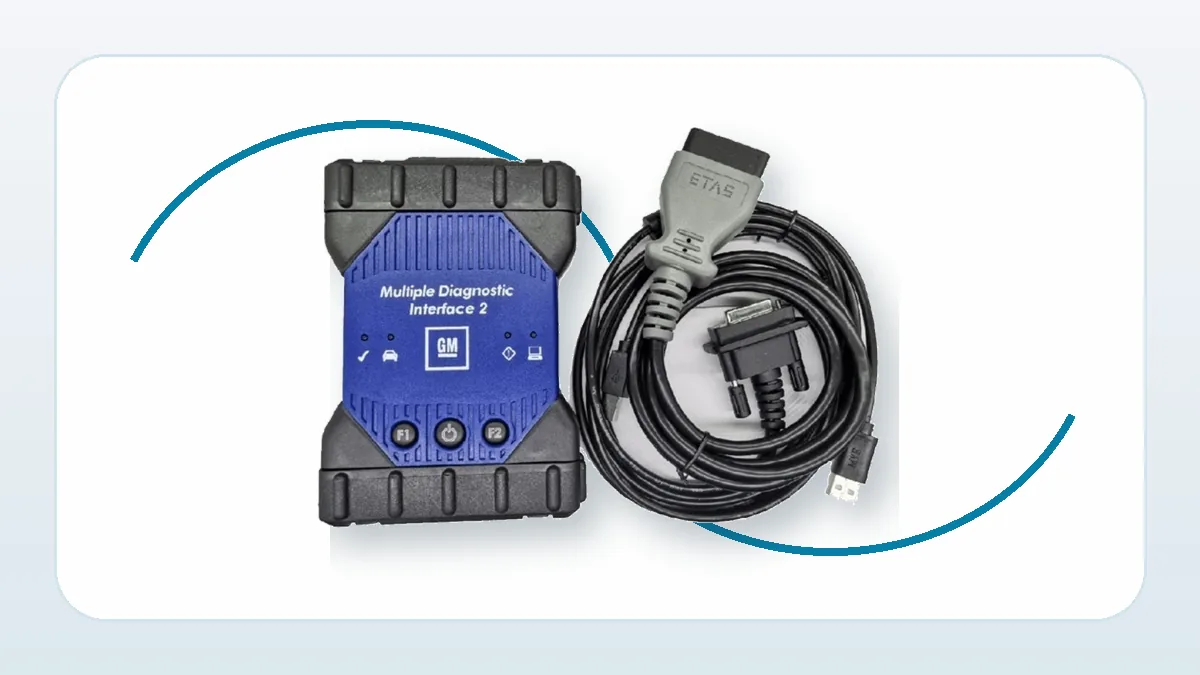

Aftermarket Opel / GM MDI 2 compatible diagnostic tool
Examine the PC-based diagnostic tool with its GDS2, Tech2Win, and SPS2 roles explained.
Current price≈ $40419,990 TL charged · VAT included · import duties excludedIn stock
Since OP-COM features vary by board and software version, the actual unit to be purchased must be verified separately.
MDI 2 approach
Decision note
OP-COM approach
Main goal
GM service software ecosystem
Opel-focused basic diagnostics and some service tasks
Software
List the operation
MDI Manager + GDS2/Tech2Win/SPS2
Variant-dependent OP-COM application
Programming
Verify license source
VCI in supported SPS2 workflow
Not considered an ECU reprogramming device
Requires power and authorization
Hardware standard
Original and aftermarket examples are separate
Numerous clones/revisions
Board photo and serial number
User type
Technical service and user capable of PC management
Narrower Opel needs
Decision guide
Cover of a guide comparing the usage approach of Opel MDI 2 compatible diagnostic tools and OP-COM
The MDI 2 class device is a VCI that communicates between the vehicle and GM applications on a Windows computer. MDI Manager manages the device; GDS2 provides diagnostics, data, and output control on newer supported GM platforms; Tech2Win offers the older Tech 2 scope on a PC; SPS2 is a separate online flow for supported ECU software operations. This setup means multiple applications, current Windows requirements, GM subscription, and workshop network management. In a professional service, it adds value to the workflow if regular diagnostics and manufacturer procedures are performed on the same vehicle family. For a user who will only read codes on an old Opel a few times a year, the cost and setup burden of this ecosystem may be excessive.
PC-based VCI
Multiple GM applications
Subscription and account requirements
Service procedure and record discipline
Decision guide
What problem is MDI 2 designed for?
OP-COM is a common name used in the market for Opel-focused USB interfaces; under the same name, there are different board versions, microcontrollers, firmwares, and software packages. Therefore, the model year, 'full chip', CAN support, or coding list stated in one listing cannot be transferred to another OP-COM unit. For older Opel models, fault codes, measurement blocks, actuator tests, and some variant-dependent service/coding functions may be practical. However, current manufacturer programming, official online security access, and new vehicle architecture cannot be assumed from the OP-COM name. Before purchasing, the board photo, firmware version, legal software source, supported operating system, and actual test on the relevant vehicle should be requested.
No single official OP-COM hardware standard
Board and firmware variants change functionality
May be practical for basic diagnostics of older Opels
Online programming and security access are not assumed
Decision guide
Why is the name OP-COM not a single feature list?
Reading fault codes, viewing live data, performing active tests, coding variants, and loading ECU software are operations with different risk levels. GM's GDS2 manual states that ECU programming is not done within GDS2; a separate workflow like SPS2 is required for programming. The MDI 2 compatible interface is only a communication component in this flow. OP-COM, in general, should not be considered an ECU re-flash interface. For both devices, the presence of a command in the menu does not imply transaction authorization, correct calibration, or safe writing. If programming is the goal, vehicle power support, correct VIN/ECU, stable connection, official subscription, and rollback procedure should be part of the purchase decision.
Code reading and flashing are not the same operation
GDS2 is for diagnostics, SPS2 is for programming workflow
VCI does not provide license and calibration
OP-COM is not considered a programming device
Decision guide
Separate diagnostics from ECU programming
For a user performing maintenance and basic diagnostics on one or a few older Opels, the first step is to list the intended operations: engine fault code, ABS/airbag access, live data, service reset, or a specific adaptation. If these operations can be verified with the actual OP-COM hardware and software combination to be purchased, it may be a more economical and simpler solution. However, clone boards, old Windows requirements, and uncertain software sources still pose risks. If MDI 2 is chosen, the scope of Tech2Win, vehicle exceptions, and GM access costs should also be examined. Simply purchasing MDI 2 because its casing looks more professional does not provide an advantage if there is no match for the relevant vehicle and function.
First, target module and operation
Actual device/version test
Windows and license costs
Do not decide based on casing name
Product-based visual representing the selection of MDI 2 compatible VCI in an Opel service
Decision guide
Choice for older Opel owners
A service that regularly accepts GM/Opel vehicles, can perform VIN-based coverage checks, reporting, use GDS2/Tech2Win, and manage authorized SPS2 workflows when necessary, will derive more value from the MDI 2 approach. The critical decision here is between an aftermarket device and a verifiable original Bosch/GM device. GM states that counterfeit MDI 2 units can be fitted with old or low-quality internal boards into new casings and may cause issues with new vehicle architectures. If the risk of lost business and programming failure is high, the cost of original supply, warranty, and support may be justified. An aftermarket interface offers a lower initial cost; however, it requires accepting a backup device, connection testing, and operational limitations.
Regular GM/Opel business volume
VIN-based coverage verification
Original vs. aftermarket risk difference
Backup connection plan
Decision guide
Choice for independent Opel/GM service
Opel's transition to the PSA structure and subsequently Stellantis does not mean that all new models are the same as the old GM diagnostic chain. Instead of the brand badge on the vehicle, the platform, production year, ECU, and the manufacturer's current service access are the determining factors. The claim of CAN FD or DoIP in the MDI 2 casing does not prove that the protocol is correctly implemented on the aftermarket board and will work on the target Opel. Similarly, OP-COM having menus for older Opels does not cover new Stellantis platforms. Before purchasing a device for a new model, it is essential to check the VIN-based official service information, the required VCI, the security gateway, and the online account.
Platform instead of brand badge
VIN-based official service information
Real hardware test for CAN FD/DoIP
Security gateway and online access
Decision guide
Special attention during the new Opel and Stellantis era
The total cost of choosing the MDI 2 includes a suitable Windows computer, official subscription, workshop internet, power support device, setup time, and potential spare VCI. The low purchase price of OP-COM is balanced by an old operating system, difficulty finding reliable software, clone card failure, and limited new vehicle coverage. A multi-brand service tablet offers a higher initial cost, consolidating different brands on a single device, but may omit some manufacturer-level workflows. Instead of comparing live product prices alone, the number of vehicles per year, earned jobs, downtime, and the cost of failed programming should be calculated. Pre-ordering a device without proof of stock is a commercial risk, not a technical one.
Computer and subscription
Power supply and network
Setup/support time
Lost business and spare device
Decision guide
Total cost is not just the device price
For users wanting a few basic, verified functions on older Opels and working with a lower budget, the OP-COM class can be considered, provided it passes real card/version testing. Technical users who will regularly use GM service applications and manage the subscription and Windows infrastructure can evaluate the MDI 2 approach. If uninterrupted professional work, new architecture, and programming security are priorities, a verifiable original GM/Bosch interface is a more accurate reference. Workshops with a high density of different vehicle brands may consider using a multi-brand service tablet alongside manufacturer interfaces. No choice should be made solely on marketing headlines without written verification of vehicle and function coverage.
Narrow and old Opel needs: verified OP-COM
GM PC ecosystem: MDI 2 approach
Lowest operational risk: documented original VCI
Multi-brand workload: service tablet + required manufacturer VCI
Frequently Asked Questions
Most frequently asked questions by customers
Opel MDI 2 and OP-COM Difference: Which is Suitable? | Otobiltek
Does OP-COM replace MDI 2?
Not for all tasks. OP-COM is a different ecosystem for narrower Opel diagnostic use; it does not assume the VCI role of the MDI 2 class for GDS2, Tech2Win, or SPS2.
Is MDI 2 better for every Opel because it is newer?
No. Vehicle platform, model year, ECU, software, and subscription are the determining factors. New Stellantis Opel models do not automatically fall under the old GM scope.
Is programming safe with an aftermarket MDI 2?
Cannot be considered completely safe. Hardware revision, connection stability, correct procedure, vehicle power support, and official subscription must be verified together.
Is the GDS2 license included in the product price?
No. VCI hardware and GM software subscription are separate items. The initial setup guide on the product page does not provide a license or account.
Which is more logical for just reading fault codes?
Aftermarket diagnostic tool in MDI 2 format, used for computer-based diagnosis in Opel, Vauxhall, and GM vehicles with appropriate official software and subscription; offered with a one-time initial setup guidance.
Diagnosis and live data in vehicles supported by GDS2
PC-based diagnosis in older GM vehicles within Tech2Win scope
Vehicle-PC communication in supported SPS2 operations
