Thinktool Model Guide

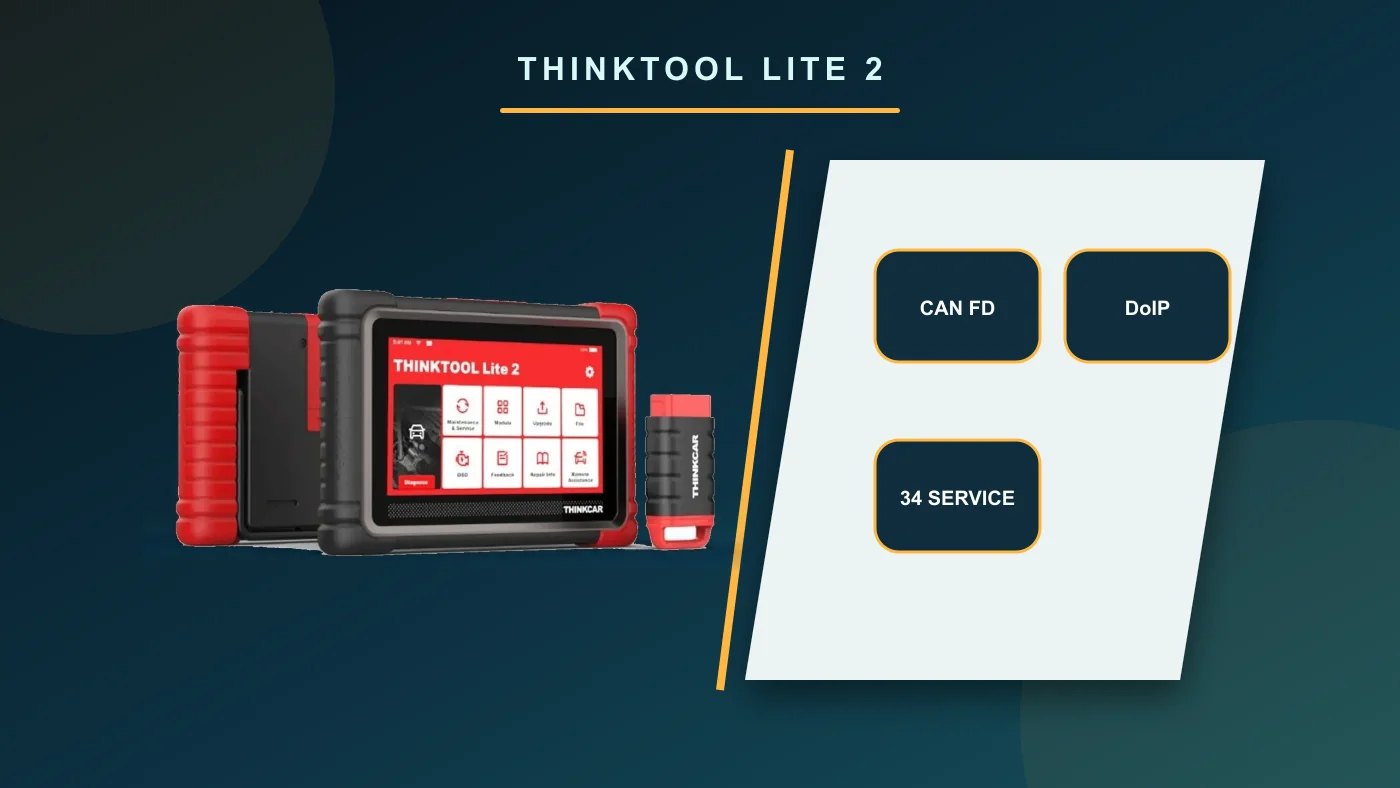

Thinktool Lite 2 in brief: Combines a 7-inch standalone tablet, ThinkDiag Mini 2 VCI, DoIP, CAN FD, and 34 maintenance functions in a compact body. For the right choice, check the vehicle protocols in your service, target active tests, and update conditions on a per-vehicle basis.
Quick comparison
| Control point | Why is it important? | What should the user verify? |
|---|---|---|
| Tablet | 7-inch standalone operation | Compare screen size with daily usage time |
| VCI | Wireless connection with ThinkDiag Mini 2 | Check the delivered VCI name |
| Protocol | DoIP and CAN FD enable new vehicle communication | Search for the function on the specific vehicle in the coverage screen |
| License | Affects new vehicle and function updates | Check included duration and renewal terms |
Decision guide
Lite 2 is aimed at passenger car services that want to perform full system scans, live data, fault codes, supported active tests, and maintenance operations without using a phone. The compact screen offers convenience for mobile service and tight workspaces. Workshops that compare multiple data for extended periods or perform advanced programming should also consider the Master and Expert families.
Decision guide
The VCI is plugged into the vehicle socket, and the tablet account and device pairing are checked. The Bluetooth connection is established through the software. The current vehicle package is downloaded for initial use, and a general scan is performed on supported vehicles for reading. The VCI serial number and tablet account are kept registered.
Decision guide
These protocols communicate with new-generation vehicle networks. The presence of a protocol logo does not mean that every coding, adaptation, or programming function is enabled. The vehicle, model year, control unit, software, and security access must be compatible for the same operation.
Decision guide
The manufacturer lists 34 maintenance functions. The availability of oil, EPB, SAS, BMS, DPF, or other service menus varies by vehicle. Searching for the five most frequent operations your service performs using brand-model-year information in the coverage screen yields more accurate results than just comparing numbers.
Decision guide
First, perform a full scan and obtain live data. Active tests should only be applied when a safe operating area and manufacturer prerequisites are met. The device command, physical response, and live data are recorded separately. The command not working is not solely indicative of a part failure; power supply, wiring, and test conditions must be checked.
Decision guide
Reader 7 is a wired device with more limited system capabilities. Lite 2 transitions to a compact service level with wireless VCI, DoIP, and CAN FD. Master 2, with its larger tablet, TVCI, and supported online programming, moves to advanced tasks. The choice is made based on the daily vehicle and operation list.
Frequently Asked Questions
Yes. The manufacturer's catalog shows DoIP and CAN FD support with the ThinkDiag Mini 2 VCI. Actual functionality on the vehicle should be checked separately.
The manufacturer specifies 34 maintenance functions. Not all functions are expected to be available on all vehicles.
No. It has its own 7-inch tablet and communicates with the vehicle via the ThinkDiag Mini 2.
Bi-directional active tests are available on supported vehicles and control units. Coverage varies by vehicle.
Online programming is not a primary verified purchase promise of this model. If programming is a main requirement, Master 2 or Expert models should be compared for the specific vehicle.
Its primary design is for passenger car service. For 12/24 V heavy-duty vehicles, a device with a suitable VCI and adapter package, such as the Master CV, is required.
