Thinktool Model Guide

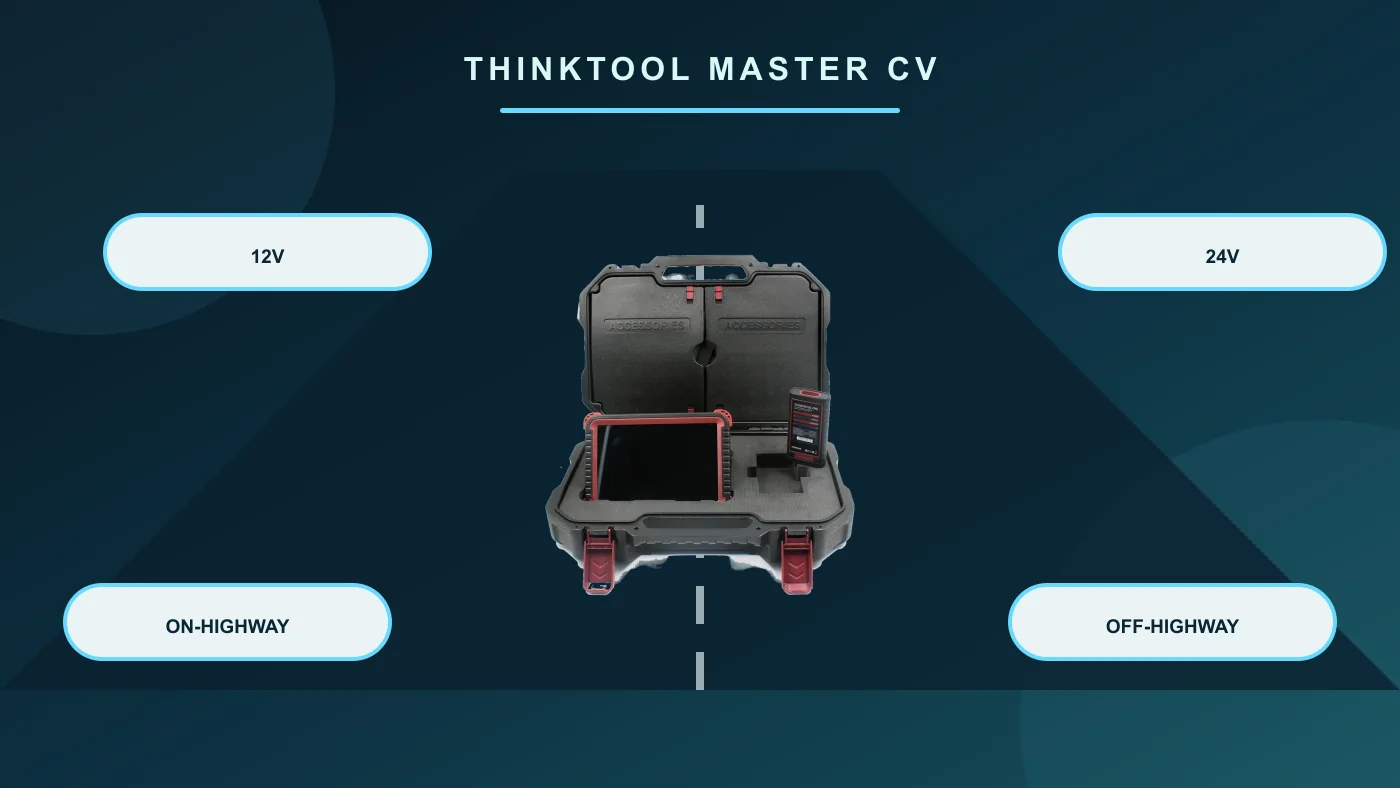

Thinktool Master CV in brief: A 10-inch Android 10 tablet and HML VCI geared towards on-highway and off-highway heavy-duty diagnostics. Selection should not be based solely on brand name without checking the vehicle software, physical socket, and adapter set together.
Quick comparison
| Control point | Why is it important? | What should the user verify? |
|---|---|---|
| Vehicle Group | On-highway and off-highway coverage varies | List brand, model, year, and ECU |
| VCI | HML VCI provides 12/24 V communication | Check the delivered interface |
| Connector | Old and special sockets require adapters | Match cables to your vehicle fleet |
| Functionality | Active test, maintenance, and DPF vary by ECU | Search for the operation on the coverage screen |
Decision guide
The official brochure lists heavy and medium commercial vehicles, as well as on-highway and off-highway groups. For trucks, buses, tractors, and construction equipment, the complete vehicle identification, ECU, and the operation to be performed are more important than the number of brands.
Decision guide
The user manual shows HML VCI for vehicle communication. Check voltage and socket pin configuration before connecting. Damaged cables, incorrect adapters, or faulty external power must not be used.
Decision guide
List the physical diagnostic sockets of the vehicles in your service and match them with the adapters in the package. Plugging in the connector is not proof of software support; the brand software and target function must also be checked.
Decision guide
The manufacturer lists DPF regeneration, special functions, and bi-directional active tests. For regeneration, temperature, open area, oil, fuel, and cooling prerequisites must be met. For active tests, ensure the machine's operating area is safe.
Decision guide
Record the series, engine manufacturer, ECU, and socket. The initial session is dedicated to reading fault codes and live data. Active tests are only performed when the equipment is moved to a safe position.
Decision guide
Master CV is a standalone tablet, heavy-duty software, and HML VCI solution. HML Box, on the other hand, is an add-on module for a compatible Thinktool main device. If you don't have a compatible main device, software, and cable package, the two products are not the same solution.
Frequently Asked Questions
Yes. For heavy-duty use, it connects to 12/24 V; the socket and adapter must be verified per vehicle.
The official manual shows HML VCI.
DPF regeneration is listed for supported vehicles and ECUs; safety prerequisites must be met.
The manufacturer specifies off-highway coverage. Tractor brand, series, ECU, and socket must be checked individually.
The package contents may vary depending on the sold set. The HML VCI, main cable, and brand adapters should be listed individually.
No. The Master CV is a standalone heavy-duty device; the HML Box is a separate module that connects to a compatible main device.
