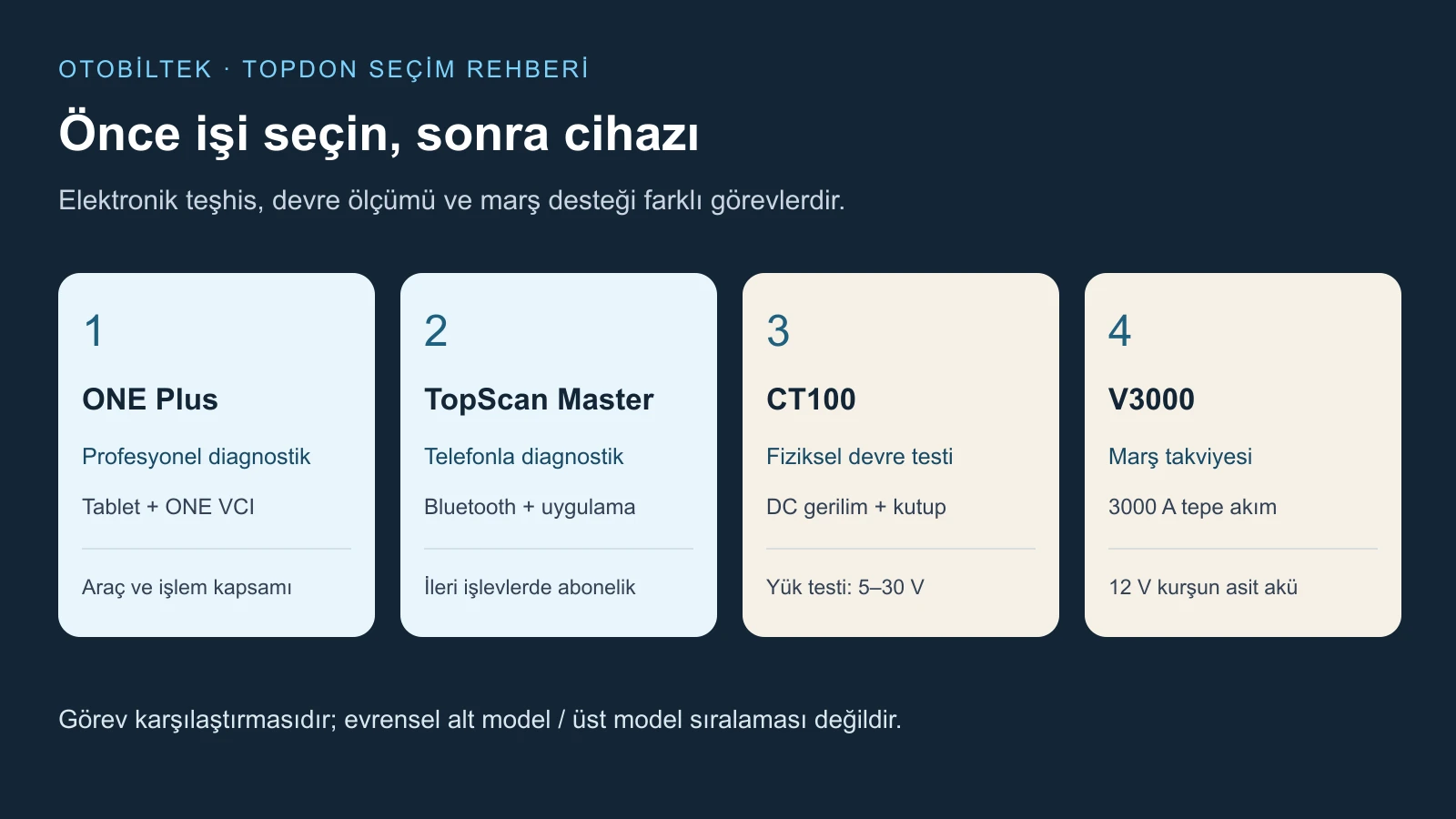

Decision guide
Determine the task first
Phrases like "vehicle not starting," "engine warning light on," and "an electrical component is not engaging" do not describe the same device need. The first case may require jump start energy, the second the control unit's error logs, and the third both electronic command and physical circuit checks. Therefore, placing the four products in a single upgrade sequence from cheapest to most expensive leads to incorrect choices. ONE Plus and TopScan Master communicate with vehicle control units. The CT100 performs measurements on electrical circuits. The V3000 provides jump start support for compatible batteries. The results from one do not automatically encompass the functions of the others.
For example, a device that reads fault codes does not solely prove that a cable maintains voltage under load. Starting the engine with a jump start does not mean the battery is healthy. The purchase priority should be determined by which stage of the most frequent workshop task lacks equipment. This guide is a task comparison based on manufacturer documentation; it does not claim that the devices have been tested in practice on the same vehicles.
Decision guide
Independent tablet or phone-operated interface?
The ONE Plus is a diagnostic tablet with its own 10.1-inch screen. The ONE VCI provides the vehicle connection; the technician performs scanning, live data, and supported active tests from a separate service screen. The TopScan Master, however, requires a compatible phone and the TOPDON app for display and operation. Bluetooth connection enables communication between the interface and the phone. The phone's operating system, app permissions, and account access are part of this operating mode.
In a workshop used by different technicians throughout the day, an independent tablet offers a separate workspace distinct from personal phone calls and notifications. For a mobile technician, the portability of a small interface may take priority. This ergonomic difference does not prove that one model will access more control units on every vehicle. Vehicle coverage is checked separately based on model year and desired operation. Do not interpret the screen size of the ONE Plus or the phone usage of the Master as sole diagnostic superiority.
Decision guide
Scanning, active test, and programming are distinct capabilities
Both diagnostic options focus on full system scanning and live data workflows on supported vehicles. Active testing involves sending a command to a component to operate; this can only be done if the relevant control unit and software menu support it. Coding, adaptation, and software installation on a control unit are not interchangeable terms. When purchasing, base your decision on which operation can be performed on which vehicle, rather than just the phrase "coding available."
The ONE Plus has a specified limited ECU programming scope for BMW and VAG groups in the official European version. This statement does not mean that all modules on all makes will be programmed online. The J2534 function of the ONE VCI can also be used with a Windows computer and the relevant manufacturer's OEM software; OEM subscriptions are subject to separate terms. The official source states that DoIP diagnostic support is not available through this OEM software path. Do not confuse this limitation with the device's own diagnostic application's DoIP support.
Decision guide
What's the difference with CAN FD and DoIP?
The ONE Plus and TopScan Master are listed with CAN FD and DoIP support in their official model information. These protocols are methods of communicating with the vehicle's electronic network. Support for a protocol does not imply authorization to bypass a security gateway or that every service command on the vehicle is available. The complete model, model year, control unit, and the operation you wish to perform are all important. Do not make purchasing decisions by transferring features of a device named Master to a TopScan Lite or Pro.
Vehicles with security gateways may require a manufacturer account, regional registration, or a separate subscription. This is why some write or active test menus may be unavailable even with a physical connection established. When selecting a device for a workshop, it is more informative to list specific tasks such as maintenance resets, injector coding, or ABS operations, rather than just listing the makes of frequently serviced vehicles. These protocols do not change the function of the CT100 and V3000; those two products do not send OBD diagnostic commands to vehicle control units.
Decision guide
Factor in updates and subscriptions for total usage cost
The European package on which this sale is based includes two years of tablet updates for the ONE Plus. Third-party OEM software, security gateway accounts, and vehicle manufacturer paid services do not automatically become free for this duration. For the TopScan Master, the advanced services of the first year and subsequent usage conditions must be reviewed separately. The manufacturer's current TopScan description separates basic OBDII and full system code reading, clearing, and live data functions as permanent basic coverage; active tests, advanced maintenance, and connected services are in the subscription section.
This distinction prevents two erroneous generalizations: "the device completely shuts down when the subscription expires" or "all functions are free for life." A person buying the Master solely for basic scanning and a service performing regular active tests do not have the same renewal needs. When calculating the purchase cost, you must add the paid services that will actually be used to the initial device cost. Base your decision on the region and account conditions in the manufacturer's app, rather than fixing the current subscription cost here.
Decision guide
Distinction between European package and single device order
The European package on which this ONE Plus sale is based includes the TopScan Master and BTMobile ProS along with the tablet and ONE VCI. Cables for main connection and USB, adapters, a carrying case, and manufacturer-listed documentation are also part of the package check. A workshop purchasing the ONE Plus package should reconsider ordering the Master separately for the same function if a second independent phone interface is not needed. The auxiliary product included in the package does not mean that all tablet functions are transferred to the phone.
The TopScan Master sold individually is not a tablet package. The phone, phone plan, and third-party account fees are not included with this product. The probe and clamp in the CT100 box are for physical circuit testing; the V3000's jump cables are for starting current. Connecting accessories with similar branding interchangeably is incorrect. The model label and accessories of the received product should be compared with the package list on its product page.
Decision guide
CT100: seeing voltage in a circuit versus performing a load test
The CT100 is a digital test pen for DC voltage and polarity checks in automotive wiring. Its official measurement range is 3.3–65 V DC; load testing is limited to the 5–30 V range and a maximum of 1.2 A. Therefore, a high measurement limit does not mean load testing can be performed at the same voltage. The red and green indicators assist with positive and negative polarity checks. The approximately 3.8-meter cable is used for accessing measurement points.
The presence of idle voltage in a circuit may not solely indicate that the connection operates correctly during current demand. Limited load testing in a suitable circuit helps investigate this difference. However, load should not be arbitrarily applied to electronic control unit pins, signal lines, or sensitive sensor circuits; follow the vehicle manufacturer's test method. The CT100 is not a substitute for an oscilloscope, all multimeter functions, or a fault code reader. It is a complementary measurement tool for auto electricians primarily performing wire and fuse checks.
Decision guide
V3000: distinguish between jump starting and battery diagnostics
The V3000 is a portable jump starter with a 3000 A peak current for 12 V lead-acid batteries. The manufacturer specifies limits of up to 9 liters for gasoline and 7 liters for diesel engines. These do not grant authorization for use on 24 V systems. Actual starting results are affected by battery condition, temperature, engine, and connections. The peak current rating should not be interpreted as continuous current. The device's 24000 mAh and 88.8 Wh values define its internal energy capacity.
The USB-C PD60W bi-directional connection can be used for charging the device with a compatible power source and for powering compatible devices. This feature does not transform the V3000 into a regulated power supply for use during ECU programming. Follow the charge level, waiting time between attempts, and number of repetitions limits in the manufacturer's manual. In case of continuous starting failure, investigate the vehicle fault instead of attempting repeatedly. A suitable battery tester is required for battery health and capacity assessment; a healthy battery decision should not be made solely based on successful jump starts.
Decision guide
Four different daily usage scenarios
If a busy multi-brand workshop wants to scan all modules, report fault records, and re-check after repair at vehicle acceptance in the morning, the independent tablet setup of the ONE Plus comes to the forefront. If a mobile technician working around the vehicle wants to perform scans and subscription-based active tests via a compatible phone, the TopScan Master offers a more portable operating mode. In both scenarios, the list of supported operations for the vehicle to be serviced is the determining factor.
If an auto electrician is investigating the supply line because a commanded component is not working, they can check voltage and polarity at appropriate test points with the CT100. Instead of trying to resolve a physical wire fault solely from the diagnostic device screen, the measurement results are used. The vehicle owner or roadside assistance personnel are within the V3000's scope of function when they need jump start support on a compatible 12 V system. These four examples place the products into different needs; they do not lead to the conclusion that a more expensive device assumes the functions of all other devices.
Decision guide
Purchase order changes if you have existing equipment
If your workshop already has a current diagnostic tablet compatible with your vehicles, define the benefit of a second tablet with a concrete missing function first. If the missing function is physical circuit testing, the CT100 fills that gap; if it's portable jump starting, the V3000 fills another. Purchasing scanning capability that your existing tablet already has does not always open up new work areas. Similarly, a user who only performs basic scanning with a phone should transition directly to a programming tablet if their usage needs warrant it.
When choosing between the ONE Plus and Master, screen layout, shared use, programming workflow, updates, and subscriptions are separate headings. Between the CT100 and V3000, there is no diagnostic level ranking: one measures, the other provides jump start energy support. The task difference in the comparison table is not a universal quality score. Read the current sales price and stock status of the products from their respective live product cards; this guide does not make claims about fixed prices or seasonal discounts.
Decision guide
Complete initial use with the correct workflow
Before the initial scan with a diagnostic device, check the vehicle identification and system voltage, and save the report before clearing any found records. Active tests or service commands are only applied when the vehicle manufacturer's prerequisites are met. The appearance of a menu does not indicate that the vehicle is ready for the operation at that moment. If programming is to be done, a suitable power supply, connection stability, necessary accounts, and the relevant manufacturer's operating instructions must be included in the work plan.
When using the CT100, first determine the type of circuit and voltage level to be measured; do not make the load test button a default part of every measurement. For the V3000, check the polarity, battery type, and cable connections in the order specified in the manual. If the fault persists after use, do not expect results beyond the device's supported function limits. This guide facilitates selection; it does not replace the product manual and vehicle manufacturer's repair procedures.
Frequently Asked Questions
Most frequently asked questions by customers
Are ONE Plus and TopScan Master the same device?
No. The ONE Plus is a professional tablet with its own screen and ONE VCI connection. The Master is a diagnostic interface used with a compatible phone and the TOPDON app. Package contents and software terms differ.
Do I need a Master in addition to the ONE Plus?
This sale includes the TopScan Master in the primary European package. If a separate secondary interface is not required, purchasing the same device again is not mandatory. The functions and subscription terms of the tablet and the auxiliary interface are monitored separately.
Is the Master free for life with all features?
No. The manufacturer separates basic code reading, clearing, and live data coverage from active test and advanced services based on subscription terms. The current application terms apply to the operations you will use.
Does the CT100 read fault codes?
No. The CT100 performs DC voltage, polarity, and load tests within specified limits on physical electrical circuits. A compatible diagnostic device like the ONE Plus or TopScan Master is required to scan control units via OBD.
Can a 65 V load test be performed with the CT100?
No. Although the DC voltage measurement limit is 65 V, the load test is limited to 5–30 V and a maximum of 1.2 A. Load should not be applied to sensitive signal circuits without the vehicle manufacturer's instructions.
Can the V3000 be used on a 24 V truck battery?
No. The manufacturer specifies the V3000 for 12 V lead-acid batteries. Engine displacement or peak current rating does not imply 24 V system compatibility.
Can the V3000 replace a programming power supply?
No. Jump starting and USB power output are not the same as the regulated and continuous supply function required for control unit programming. A separate, suitable power supply is used for programming.
Is this guide a practical comparison test?
No. The review is based on official TOPDON product pages and manuals. Claims of superiority are not made as performance in terms of time, success rate, or fault finding was not measured on the same vehicles.
