Product information
What is Universal Diagnostic Tool – Heavy Duty Vehicles used for?
Universal Diagnostic Tool – Heavy Duty Vehicles is an unbranded VCI package separated as "passenger + heavy-duty" in the live trading system. The package includes free initial installation but does not include a software license.
Source images show the VCI body and fixed vehicle cable; however, the exact delivery list of heavy-duty adapters, 24 V operating documentation, manufacturer, model code, warranty, and update period have not been published. Therefore, heavy-duty coverage is not derived from the package name.
Physical Connection Coverage
What vehicles and devices is Universal Diagnostic Tool – Heavy Duty Vehicles used with?
Connecting the cable, adapter, or communication module to the vehicle does not prove that the vehicle is supported by the software. The physical connector, pin layout, main device, and vehicle software must be compatible simultaneously.
- Brand coverage
- There is no fixed brand list specific to the cable; the compatible main device and vehicle socket are used as a basis.
- Model Coverage
- Vehicle model and model year are verified separately in the main device's current coverage list.
- Main unit
- VCI, tablet, or diagnostic interface specified in the product name and technical resources
- Physical check
- Manufacturer and model information, Initial installation and software scope, 12/24 V operating documentation, List of delivered adapters, Vehicle and control unit coverage
- This product does not add new software, licenses, or service functions to the main device.
- Do not force connection without verifying the pin structure.
Open official sources and coverage connectionsProduct details
Verified identity of the heavy-duty package
The product is maintained in the live store system with a separate SKU from the passenger package and under the description "Passenger + Heavy-Duty Vehicle Package". The product is offered under the trade name Universal OEM; no third-party brand ownership or originality claim is established, and no unverified brand is produced in the structured data.
Case similarity does not imply the existence of specific official hardware or software licenses.
- Separate trade SKU
- Package name: passenger + heavy-duty
- Manufacturer: no published evidence
- Official model code: no published evidence
- Third-party brand ownership claim: none
Product details
What do the product photos show?

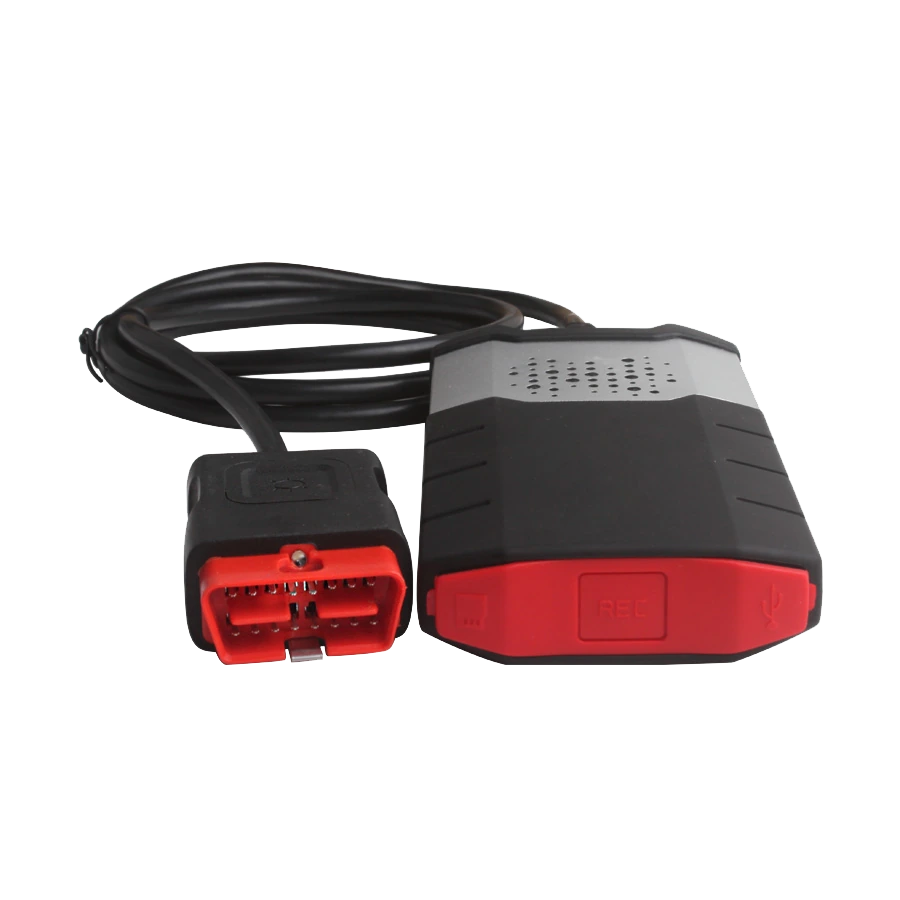

Two different source photos are used in the gallery and are not shared with files in the passenger product gallery. The images confirm a black-silver VCI body, a fixed cable, and a red 16-pin connector. One image highlights the REC and USB icons on the front of the body; the icons do not prove the functionality of the respective functions.
Although heavy-duty connector sets are in the source folder, these images have not been added to the gallery due to the absence of an official parts list matching the delivery scope. Thus, different adapters are not shown as part of the package contents.
- Actual VCI body
- Fixed vehicle cable
- 16-pin connector
- Heavy-duty adapters not included in gallery
- No generative editing on product body
Product details
Why must 24 V operation be proven separately?
A 24 V electrical system may be common in trucks, tractors, and buses. The presence of a 16-pin connector on a VCI body does not indicate that it can safely withstand a 24 V input or support commercial vehicle protocols. No voltage range, protection circuit, current rating, or 24 V test report has been published for this product.
The voltage value of another device with a similar case cannot be transferred to this product. A technical label or test document for the product variant is required for in-vehicle use.
- Input voltage: undocumented for this variant
- 24 V protection: undocumented for this variant
- Commercial vehicle protocols: undocumented for this variant
- Technical values from other brands are not transferable to this product
Product details
Heavy-duty adapters and connectors
In older or manufacturer-specific heavy-duty vehicles, round or brand-specific sockets may be used in addition to the standard 16-pin connection. A physical adapter only routes pins and power to the appropriate input; it does not add brand or control unit support to the software.
There are collages in the source folder showing different cables, but these photos do not prove which parts will be shipped with this SKU. Therefore, the page does not list BMW, Mercedes, Iveco, MAN, Scania, or any other brand adapters as included in the box.
- Actual socket on the vehicle side
- Adapter part name and pin layout
- External power requirement
- Connection on the VCI side
- Software's relevant vehicle support
Product details
Commercial vehicle software and license conditions
Passenger vehicle software and heavy-duty vehicle software are not the same scope. Engine, transmission, ABS/EBS, retarder, emissions, superstructure, and trailer systems may require different databases and protocols. Initial installation service is included free of charge in the package; software license is not included.
The source of the installation file to be used and computer security are checked with the customer. Update and reinstallation conditions are specified separately. If testing is to be performed at the vehicle, the actual diagnostic socket, the adapter to be used, and the vehicle voltage must be determined in advance. The computer must be running and connected to the internet.
Completion of installation only indicates the computer-device connection at that moment; it does not prove 24 V safety, the presence of every adapter in the package, or access to all commercial vehicle modules. Vehicle-based compatibility is checked separately.
- Initial installation: free and included in the package
- Software license: not included
- Update and reinstallation conditions are specified separately
- Passenger and heavy-duty databases are checked separately
Product details
How is truck, tractor, and bus coverage verified?
Heavy-duty vehicle compatibility cannot be reduced to brand name or model year. Within the same vehicle family, the engine manufacturer, chassis, braking system, emission level, control unit, and diagnostic socket may vary. First, determine the vehicle identity and actual socket photo; then, examine the software's brand-model-chassis and system list.
Reading engine fault codes is not the same scope as accessing ABS/EBS, automatic transmission, SCR/AdBlue, retarder, or superstructure control. As there is no manufacturer list for this product, no vehicle brand is listed with a general support promise.
- Make, full model, and chassis
- Manufacturing year and engine
- Emission level
- Diagnostic socket
- Target control unit and operation
Product details
Box contents and delivered parts
Photos confirm the VCI body and fixed cable; a delivery list for the heavy-duty vehicle cable set has not been published. Initial installation is free of charge; software license is not provided with the product. The phrase "heavy-duty package" in the product name does not mean that every adapter in the source folder will be included in the box.
In the absence of a list, the user should not assume that a round socket adapter for a specific brand or a power cable with battery clamps is included in the package.
- VCI body and fixed cable confirmed in the image
- Initial installation: free and included in the package
- Software license: not included
- Adapter names and quantities: awaiting documentation
- Power cable: awaiting documentation
Product details
Why is the passenger package a separate, lower-priced product?
The passenger package is intended for automobile use; the heavy-duty package targets commercial vehicle needs in addition to the passenger group. The price difference alone does not prove the number of adapters, 24 V protection, or software license. Current amounts are only read from the live record in the purchase area and are not repeated in the description text.
If the user does not need heavy-duty functions, they should not select the higher-priced package for unverified additional coverage.
- Passenger vehicle needs
- Heavy-duty vehicle needs
- Adapter and software proof
- Total cost of ownership
Product details
Warranty, installation, and support claims
Initial installation of the device is free. Software license is not part of the package. Warranty year and update period are not specified in the live store data. Update and reinstallation conditions are explained separately. During heavy-duty installation, Windows version, driver, VCI selection, commercial vehicle database, adapter, and voltage checks are separate steps.
Installation support does not convert unverified vehicle coverage into a warranty.
- Initial setup: free
- Software license: not included
- Warranty and update period: specified separately
- Vehicle success guarantee: not provided
Product details
Records to be requested for the heavy vehicle package before payment
Delivered adapters must be listed individually by name, photo, and quantity; the vehicle-side socket of each cable and external power requirement must be specified. The scope of free initial setup and the fact that the software license is not included in the package must be clearly indicated.
The response for the vehicle to be used must include make, exact model, chassis, production year, engine, emission level, socket, control unit, and the function to be performed.
- Device label and voltage value
- Adapter name, photo, and quantity
- Scope of free initial setup
- Information that the software license is not included
- Full vehicle and control unit response
Product details
Daily scenario: initial connection on a truck
The technician secures the vehicle, checks the battery and ground status, and identifies the actual diagnostic socket. If the vehicle is 24 V, connection is not made without proof of technical suitability of the VCI and adapter for this voltage. If external power is required, polarity and fuse value are checked.
After selecting the full vehicle and engine in the software, the communication test is run first. The control unit ID is read, and if the connection is not stable, the active test or code clearing step is not proceeded. The cable is kept away from cabin movement and hot parts.
- Vehicle voltage and ground
- Actual socket and adapter
- Polarity and external power
- Control unit ID
- Stable communication record
Product details
Daily scenario: ABS or EBS fault
In case of brake system failure, connecting to the engine control unit is not sufficient. The software must support the relevant ABS/EBS manufacturer and control unit variant. DTC, status information, and supply voltage are recorded; wheel speed sensors are monitored under the same conditions.
Active test or calibration is performed only after the vehicle manufacturer's safety steps and correct system selection are verified. Access to the brake system is not promised as there is no heavy vehicle function list for this product. Lack of communication does not indicate a healthy brake system.
- ABS/EBS manufacturer
- Control unit variant
- DTC and live data
- Safety prerequisites
- Post-repair re-scan
Product details
Daily scenario: SCR and AdBlue warning
In case of SCR/AdBlue failure, the fault code, exhaust temperatures, NOx sensor data, dosing system, and fluid quality are examined in the same diagnostic plan. Menus such as service regeneration, counter reset, or component introduction may require write authorization and special prerequisites. Even if the menu name is visible, the process is not considered proven support.
No action that disables the emission system or exceeds legal limits should be taken without verifying hardware and software coverage. Diagnostic results must be supported by physical leak and electrical measurements.
- DTC and operating condition
- NOx and temperature data
- Dosing system check
- Legal emission limits
- Post-operation verification
Product details
Daily scenario: fleet vehicle acceptance scan
During fleet acceptance, the license plate or chassis, mileage, software version, and scanned control units are recorded for each vehicle. Even in vehicles of the same model, the ECU variant or socket may differ. Systems inaccessible during the initial scan are clearly stated in the report; it is not stated that "full system scan was performed" based solely on read modules.
In subsequent services, the change is compared using the same device and version. The suitability of the heavy vehicle package for daily fleet work can be evaluated after proving stable connection, availability of necessary adapters, and legal use of the license.
- Vehicle identification record
- Scanned module list
- Inaccessible systems
- Software and VCI version
- Comparison with previous report
Product details
Sequence to follow if connection cannot be established
First, check the supply, ground, and fuse at the vehicle socket; then check the adapter's pin layout, power cable, and connection to the VCI. On the computer, check the driver, port, selected hardware, and the commercial vehicle software package. The presence of the vehicle name in the passenger car database does not mean communication with the heavy vehicle module is possible.
Before trying another adapter, compare the pin diagram; do not force the wrong cable. Even if the device works on another vehicle, the access problem on the target control unit may be due to software or protocol incompatibility.
- Supply, ground, and fuse
- Pin layout and adapter
- Driver and VCI selection
- Commercial vehicle software
- Target control unit support
Product details
Safe operating limits in heavy vehicles
VCIs or cables not proven suitable for 24 V vehicles should not be used. Incorrect pins, reverse polarity, or inadequate protection devices can damage the device and vehicle control units. Coding or writing operations require stable voltage support, uninterrupted computer power, and a recovery plan.
Cabin tilting, engine running, and moving parts can affect the cable route. Software from unknown sources must be scanned for security on a separate service computer. Actions intended to disable emission, brake, or safety systems are not supported.
- Verified voltage range
- Correct pin and polarity
- Stable power support
- Cable route
- Software security
