CRP919X BT front housingAngled tabletDBScar VII vehicle communication interface
Launch X431 CRP919E BT highlighted tasks
Launch X431 CRP919X BT
A Launch model on a 7-inch tablet integrating DBScar VII Bluetooth VCI, full system scanning, active tests, ECU coding, CAN FD, and expandable DoIP support.
The CRP919X BT is a service-type diagnostic device that establishes the connection between the vehicle and the tablet via the DBScar VII Bluetooth VCI.
Launch publishes this model in the same official product family as the CRP919E BT; it lists common features for both variants, including full system fault detection, actuator tests, ECU coding, CAN FD, expandable DoIP, and FCA AutoAuth capabilities. The manual files provided by the manufacturer for X and E also contain the same technical text.
Therefore, the verified distinction is the case color seen in the official image and the model name; any difference in package, license, or vehicle coverage must be confirmed separately before ordering.
What would you buy this for?
Auto repair shops working wirelessly with VCI around the vehicle
Need for full system scanning, live data, and actuator tests
Operation on supported vehicles using CAN FD or DoIP
Technicians looking for a compact 7-inch Launch service tablet
Featured diagnostic features
Vehicle and Operation Coverage
Türkiye package contents
Update and license conditions
Vehicle Coverage
What vehicles does the Launch X431 CRP919X BT support?
The make name alone does not guarantee compatibility. Within the same make, model year, engine, chassis, control unit, communication protocol, and intended operation can yield different support results.
Vehicle Group
Passenger cars and light commercial vehicles included in the product software
Supported makes
Multi-brand coverage; the current make list is obtained from the manufacturer's official vehicle or protocol database.
Supported models
Verified from the official coverage screen based on make, model, model year, engine or chassis, and control unit.
Scope of service
Code reading, live data, active test, service function, coding, and programming may be supported separately.
Connection conditions
Vehicle and function coverage, Türkiye package contents, Update and license conditions
The make and model examples on the page do not guarantee all production years and all functions.
Before any definitive operation, the manufacturer's current coverage record must be verified with the VIN or full vehicle information.
The device is used to scan supported vehicle control units in a single session and perform fault records, live data, service functions, and active test steps from the same screen. The DBScar VII adapter connects to the vehicle's OBD socket; the tablet communicates with the VCI via Bluetooth. Wireless connection facilitates technician movement around the vehicle.
Scan results are not direct decisions for parts replacement; codes, live data, electrical measurements, and manufacturer's test procedures should be examined together.
Full system scan
Fault code and live data
Supported actuator tests
Service report and diagnostic history
Product details
Technical information in the official manual

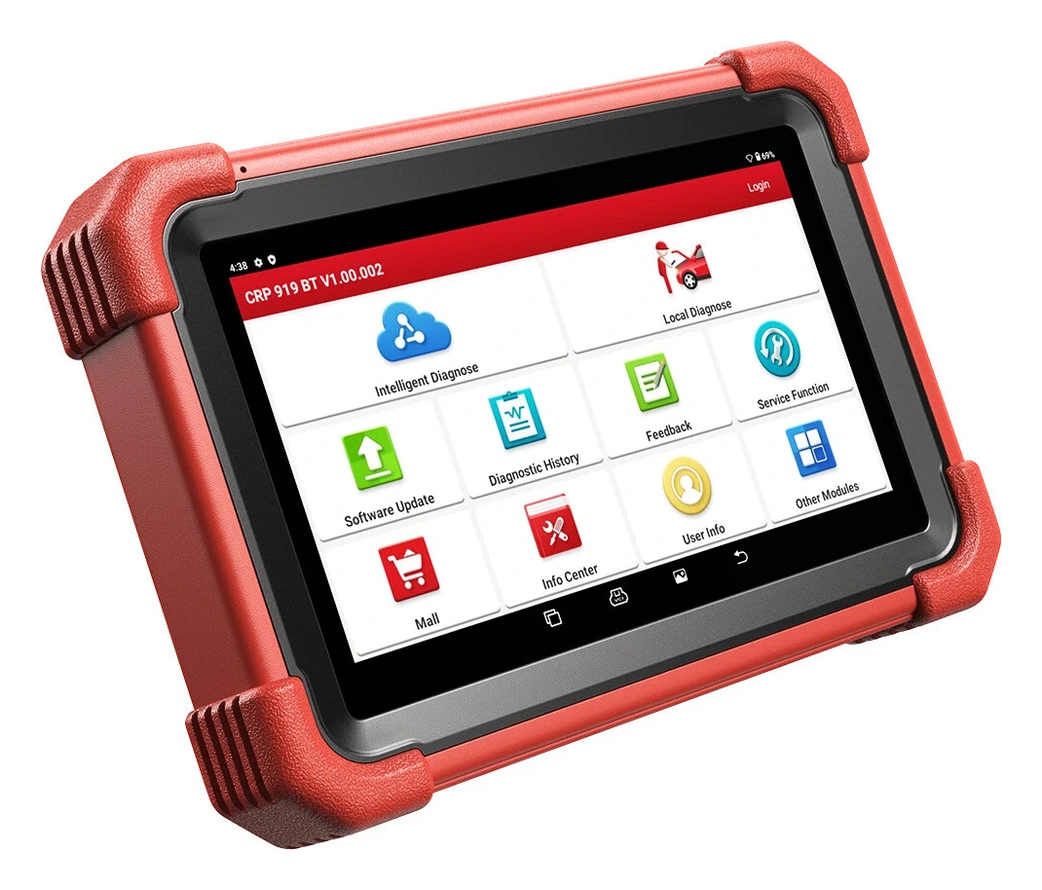

The Launch user manual lists an Android operating system, 4 GB memory, 64 GB storage, a 7-inch capacitive screen with 1024 × 600 resolution, an 8 MP rear camera, dual-band Wi-Fi, and Bluetooth connectivity. An operating voltage of 9–18 V is specified for the VCI.
This information outlines the hardware framework of the device family; commercial conditions such as the number of accessories or software duration in the Türkiye package must be checked separately.
Screen
7-inch, 1024 × 600Capacitive touchscreen.
Memory
4 GB RAM / 64 GB storageValues from the official user manual.
Connection

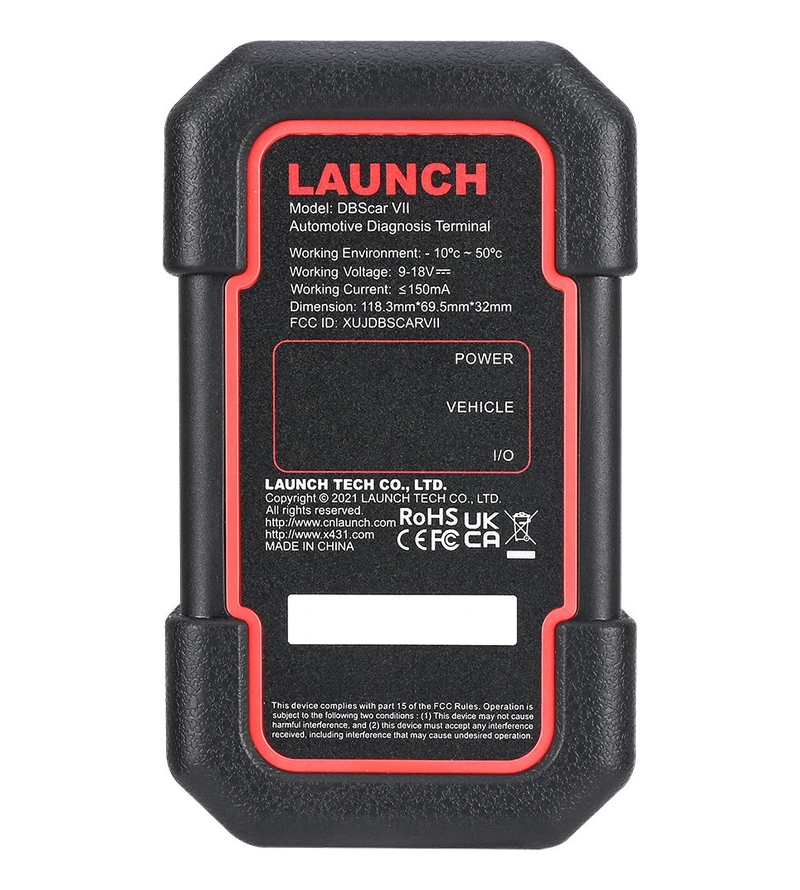

Wi-Fi and BluetoothVehicle connection is established via DBScar VII VCI.
Camera
8 MP rear cameraCan be used for service records.
Product details
Active test and ECU coding coverage
Actuator testing helps observe whether components like fans, relays, valves, or similar parts respond by sending commands from the device to the supported control unit. ECU coding provides access to manufacturer-supported setting, adaptation, and programmable module steps; it does not mean full software programming on all vehicles.
The visibility of menus depends on the make, model, year, control unit, and software version. Before purchasing, the intended operation must be checked in the Launch coverage query with the vehicle information.
Sending commands to supported parts
Monitoring response with live data
Vehicle-dependent coding and adaptation
Coverage verification before operation
Product details
CAN FD, DoIP, and security gateway
The Launch product page lists CAN FD support, expandable DoIP connection, and FCA AutoAuth access for the CRP 919E/X BT family. DoIP usage depends on the vehicle's protocol support and required connection equipment. For vehicles with a security gateway, account, authorization, and country conditions may also apply.
Before writing or coding operations, the vehicle battery, connection stability, and manufacturer's service procedure must be prepared.
CAN FD vehicle communication
DoIP expansion with appropriate equipment
FCA AutoAuth on supported vehicles
Stable power and connection preparation
Product details
Verified difference between CRP919X BT and CRP919E BT
Launch presents both models on the same official product page with common technical descriptions. The files downloaded from the manual links for X BT and E BT published by the manufacturer come with identical content and file summaries. The official visual shows the X model with a red protective case and the E model with a black one.
Beyond this, as no separate verified advantage in terms of operation, hardware, or licensing is published, no such claim is made on the page. If there is a difference in accessories, updates, or licenses in the Türkiye sales package, it must be confirmed separately with the order record.
Common official technical page
Same official manual content
Different case color in the visual
Verify package and license difference before ordering
Product details
Usage flow from vehicle intake to report
At vehicle intake, battery voltage and OBD connection are checked first. After the VCI and tablet are paired, the VIN is read automatically or the vehicle is selected manually. Once the full system scan is complete, health reports and relevant live data are recorded before clearing fault codes.
After repair, the same systems are scanned again and compared with the previous report. This flow preserves the initial finding in intermittent faults and helps to show the performed operation to the customer more clearly.
Check battery and OBD connection
VIN or manual vehicle selection
Save pre-repair report
Rescan after repair
Product details
Box contents and Turkey package
The official manual references the package contents as screen tablet, VCI connector, diagnostic cable, power adapter, USB cable, and quick start guide; it also states that accessories may vary by sales region. Therefore, not all parts shown in the global visual are automatically included in the Türkiye package.
The device, VCI, cable, adapter, update period, and license information to be delivered must be verified via the sales summary before ordering.
Tablet and DBScar VII VCI
Diagnostic and USB cables
Accessories that vary by region
Confirm Türkiye package before ordering
Product details
Wireless full system scanning with X431 CRP919X BT model
When performing a full system scan with the X431 CRP919X BT model, the correct vehicle record and relevant control unit are accessed. The X431 CRP919X BT adds the status of the fault code and any available description or event information to the initial report. The X431 CRP919X BT service record includes vehicle identity, control unit, and software version.
The technician does not decide on parts replacement without comparing the X431 CRP919X BT finding with live data and physical inspection. After the operation, the same code is read again; current, historical, and returned records are shown separately.
Verify vehicle identity
Save the initial system scan
Check vehicle and function coverage information
Re-scan after service operation
Product details
Active test with X431 CRP919X BT model
Before applying an active test with the X431 CRP919X BT model, the correct vehicle and control unit are selected. The X431 CRP919X BT saves the relevant fault codes, live data, and vehicle voltage as the initial record.
For the X431 CRP919X BT, the vehicle, model year, control unit, and active test function are verified in the manufacturer's current support list. If the command is to move a fan, pump, valve, or another actuator, the work area is secured before using the X431 CRP919X BT.
When the test is complete, the device re-reads the same system and shows the observed physical response alongside the on-screen result in the service report.
Select the correct vehicle and system
Record initial codes and live data
Allow safe space for moving parts
Report system response after command
Product details
ECU coding with X431 CRP919X BT model
Before starting ECU coding with the X431 CRP919X BT model, the vehicle, control unit, and the software package to be used are verified. The X431 CRP919X BT saves the current coding or software information as a rollback record.
For the X431 CRP919X BT, the vehicle, model year, control unit, and writing function are verified in the current list published by Launch. Throughout the operation, vehicle voltage is maintained stable with a suitable power supply; the X431 CRP919X BT is used without interruption of internet and VCI connection.
In the final scan, this device reports the writing result along with the control unit status and error logs.
Verify vehicle identity
Save the initial system scan
Check vehicle and function coverage information
Re-scan after service operation
Product details
Initial system scan during vehicle intake with X431 CRP919X BT model
When performing the initial system scan during vehicle intake with the X431 CRP919X BT model, the vehicle identity is verified and supported control units are scanned. The X431 CRP919X BT saves the communicating systems, fault codes, and accessible event information together in the initial report.
The VCI model used with the X431 CRP919X BT, software version, and vehicle identity are added to the vehicle intake record. Codes are not cleared before the X431 CRP919X BT initial report is obtained; a single fault record does not directly lead to a parts replacement decision.
The X431 CRP919X BT intake scan is added to the service form, specifying the customer complaint and systems to be followed.
Verify vehicle identity
Save the initial system scan
Check vehicle and function coverage information
Re-scan after service operation
Product details
How is X431 CRP919X BT model vehicle coverage verified?
Definitive compatibility cannot be stated for the X431 CRP919X BT model without selecting the vehicle make, model, year, engine, control unit, and the intended operation together. The Launch official coverage tool shows which systems, service functions, or protocols are accessible on the selected vehicle and control unit for the X431 CRP919X BT.
The presence of the brand line does not prove that active test, coding, programming, TPMS relearn, or security gateway access is also enabled on the X431 CRP919X BT.
Before ordering, prepare the VIN or full model information, model year, engine/chassis distinction, and intended operation for the X431 CRP919X BT; also check the software version, license duration, VCI, adapter, and regional package.
X431 CRP919X BT model: prepare brand, model, model year, and engine/chassis information
X431 CRP919X BT model: select desired system and function separately; read, live data, active test, coding, or programming
X431 CRP919X BT model: verify ECU and function line on official coverage vehicle
Frequently asked questions about Launch X431 CRP919X BT
Does CRP919X BT work wirelessly?
Yes. The DBScar VII VCI connects to the vehicle's OBD socket, and the tablet communicates with the VCI via Bluetooth. This setup allows the technician to move around the vehicle without carrying cables. Wi-Fi is used for internet-connected features and software updates. Wireless connection alone does not expand vehicle or function coverage.
What is the verified difference between CRP919X BT and CRP919E BT?
Launch releases CRP919X BT and CRP919E BT models with common technical specifications on the same official product page. Manufacturer guides also contain the same technical content. The visible distinction we can verify is the red protective case for the X model and the black for the E model.
Package, license, update period, or vehicle coverage differences must be confirmed separately before ordering.
Does active test work on every vehicle?
No. Although the CRP919X BT offers active test functionality, the commands that can be activated vary depending on the vehicle's make, model, year of manufacture, control unit, and software version.
Before sending commands to a component such as a fan, relay, or valve, the relevant vehicle and system must be checked in the Launch coverage query; the result must be verified with safe physical response and live data.
Can DoIP be used directly?
It should not be assumed that it can be used directly on every vehicle. Launch lists DoIP support in the CRP919X BT family as 'expandable.' Therefore, along with the vehicle's support for the DoIP protocol, the required connection equipment and software coverage must be verified before the operation. Although CAN FD is listed as a device feature, the two protocols do not have the same connection requirements.
Is the package content fixed?
No. The official manual references the package contents as tablet, DBScar VII VCI, diagnostic cable, power adapter, USB cable, and quick start guide; it also states that accessories may vary by sales region. The device, cables, adapters, license, and update period to be delivered in the Türkiye package must be checked separately in the order summary.
How is vehicle compatibility checked?
Looking at the brand name alone is not sufficient. The vehicle's make, model, year of manufacture, engine or control unit, communication protocol, and the intended operation must be searched together in the Launch official coverage query.
Physical OBD connection compatibility alone does not guarantee that the active test or coding menu will be activated; exact coverage is verified on a per-operation basis.
What specific functions is the X431 CRP919X BT model used for?
The X431 CRP919X BT model is a service-level diagnostic device used for wireless full system scanning, active tests, ECU coding, and for CAN FD and DoIP.
Vehicle and operation coverage, Turkey package content, and update and license conditions show the vehicle, connection, and package selection requirements for the X431 CRP919X BT. If the operation to be performed with the X431 CRP919X BT model is not found in the manufacturer's current vehicle and function list, it is not considered a standard feature.
Does the X431 CRP919X BT model offer the same functions on every vehicle?
No. The vehicle and function coverage on the X431 CRP919X BT model is determined by the make, model, year, control unit, and installed software package. The manufacturer's official vehicle and function list is used as a basis for the X431 CRP919X BT. The list shows the X431 CRP919X BT functions on a per-vehicle and per-control unit basis.
